| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | SGN, SGI |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Refrigeration Sight Glass | Port Size (Inch): | 1/4'', 3/8'', 1/2'', 5/8'', 7/8'' |
|---|---|---|---|
| Connection: | Solder (ODF X ODF) | Refrigerant: | CFC, HCFC, HFC |
| Media Temperature: | -58 To 175 °F | Max Working Pressure: | 500 Psig |
| High Light: | Danfoss Sight Glass SGN,Danfoss Sight Glass SGI,Danfoss Refrigeration Sight Glass |
||

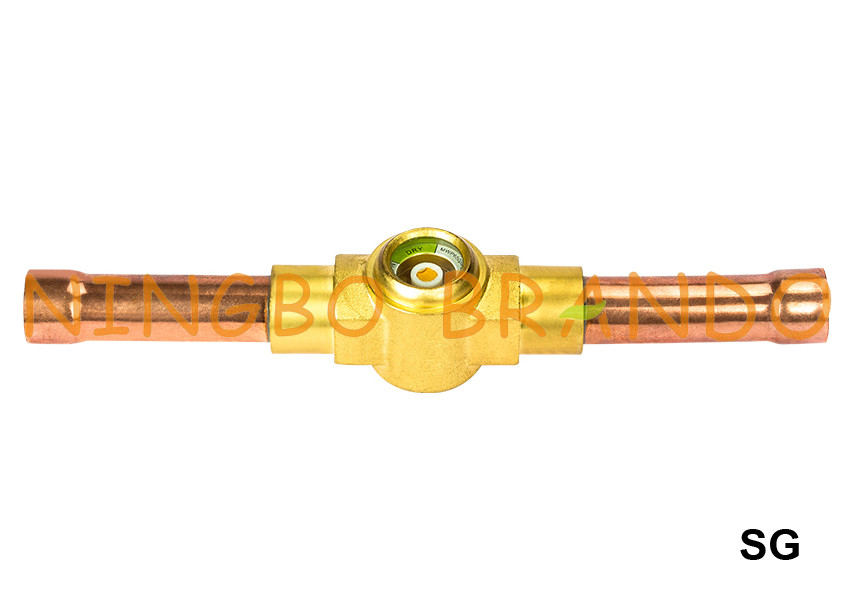

SG SGN SGI Danfoss Type Refrigeration Sight Glass 1/4'' to 7/8'' ODF x ODF
SG is sight glasses for low pressure application (Max Working Pressure 500 psig). SG is available with flare, solder and socket connections, and with and without moisture indicators. SG and SGR, without moisture indicator, are mainly used to indicate the condition of the refrigerant in the liquid line or the flow in the oil return line from the oil separator. SGI / SGN and SGRI / SGRN are equipped with sensitive indicators that reflects a color, which depends on the moisture content in the refrigerant.
Main Dimension of SG series Refrigeration Sight Glass:
|
Model
|
Connection Type
|
Connection Size
|
L
|
L1
|
H
|
H1
|
B1
|
φD
|
|
inch
|
||||||||
|
SGI / SGN 6
|
Flare
ext x ext
|
1/4''
|
2.638
|
-
|
0.945
|
0.551
|
0.551
|
1.063
|
|
SGI / SGN 10
|
3/8''
|
3.228
|
-
|
1.102
|
0.63
|
0.748
|
1.26
|
|
|
SGI / SGN 6
|
Flare
int x ext |
1/4''
|
1.811
|
-
|
0.945
|
0.551
|
0.63
|
1.063
|
|
SGI / SGN 10
|
3/8''
|
2.244
|
-
|
1.181
|
0.669
|
0.866
|
1.26
|
|
|
SGI / SGN 12
|
1/2''
|
2.323
|
-
|
1.181
|
1.181
|
0.945
|
1.26
|
|
|
SGI / SGN 6s
|
ODF x ODF
Solder
|
1/4''
|
3.976
|
0.276
|
0.945
|
0.551
|
0.551
|
1.063
|
|
SGI / SGN 10s
|
3/8''
|
4.685
|
0.354
|
0.945
|
0.551
|
0.551
|
1.063
|
|
|
SGI / SGN 12s
|
1/2''
|
5.748
|
0.394
|
1.102
|
0.63
|
0.748
|
1.063
|
|
|
SGI / SGN 16s
|
5/8''
|
5.748
|
0.472
|
1.181
|
0.709
|
0.866
|
1.063
|
|
|
SGI / SGN 22s
|
7/8''
|
6.811
|
0.699
|
1.457
|
0.827
|
1.063
|
1.26
|
|
|
SGI / SGN 6s
|
ODF x ODM
Solder |
1/4''
|
3.976
|
0.276
|
0.945
|
0.551
|
0.551
|
1.063
|
|
SGI / SGN 12s
|
5/16''
|
5.748
|
0.394
|
1.102
|
0.63
|
0.748
|
1.063
|
|
Technical Data of SG series Refrigeration Sight Glass:
