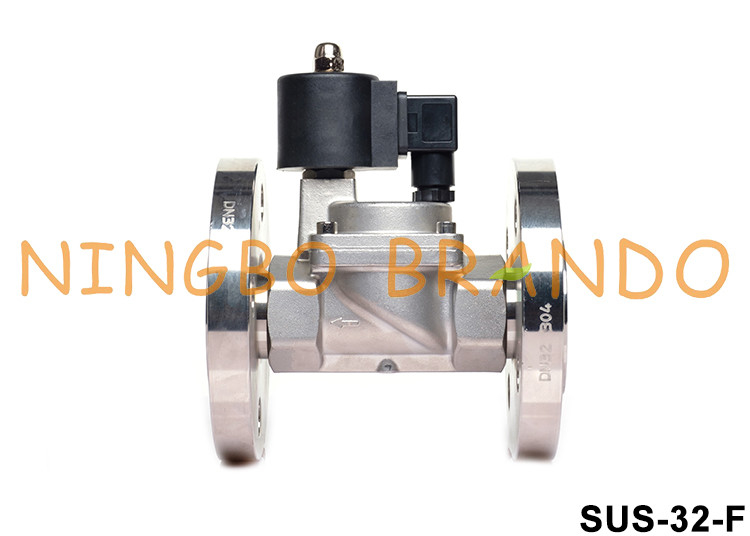

Name: 1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V
Brand: Brando
SKU: SUS-32-F
Rating: 4.7 (110 reviews)

Home Products Stainless Steel Solenoid Valve

1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	SUS-32-F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability:	300000 sets per month

Contact Now

Detailed Product Description

Port Size:	1 1/4''	Pipe Connection:	Flanged
Orifice Size:	32mm	Function:	2 Way, Normally Closed
Operation:	Piston Pilot Operated	Body Material:	Stainless Steel
Seal Material:	PTFE ()	Working Pressure Range:	0.05 To 6 MPa
Voltages:	24VDC, 110VAC, 220VAC	Coil Protection Class:	IP65, IP67, Ex-proof
High Light:	1-1/4'' Stainless Steel Solenoid Valve , Flanged Stainless Steel Solenoid Valve , SUS-32-F Solenoid Valve

1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V

1. Piston pilot operated solenoid valve, change quickly, start smooth, large flow.
2. Compact structure, small size, light weight, easy repair.
3. Body material stainless steel SUS304, solenoid valve coil heat-resistant grade H, rubber seal has better sealing performance and low pressure working conditions, wide range of applications.
4. PTFE () seals is suitable for a variety of working media, chemical fluids, especially for high temperature and steam, sealing performance is worse than rubber.
5. Coil protection class IP65, IP67 and explosion-proof, the connection mode has flying wire type, DIN socket type, for different occasions.
6. Long service life.

Main Dimension of SUS-F series Stainless Steel Solenoid Valve:

1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V 0

Model	L	H	A	B	C	D	K
SUS-15-F	115	155	47.5	95	65	14	15
SUS-15-F-NO		162
SUS-20-F	126	167	52.5	105	75	14	20
SUS-20-F-NO		174
SUS-25-F	143	178	57.5	115	85	14	25
SUS-25-F-NO		185
SUS-32-F	158	195	70	140	100	18	32
SUS-32-F-NO		202
SUS-40-F	181	211	75	150	110	18	40
SUS-40-F-NO		218
SUS-50-F	200	227	82.5	165	125	18	80
SUS-50-F-NO		234

1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V 1

1-1/4'' Flanged Steam Stainless Steel Solenoid Valve 24V 220V 2

Technical Data of SUS Series Stainless Steel Solenoid Valve:

Model	SUS-15	SUS-20	SUS-25	SUS-32	SUS-40	SUS-50
Model	SUS-15-NO	SUS-20-NO	SUS-25-NO	SIUS-32-NO	SUS-40-NO	SUS-50-NO
Port Size	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Orifice Size	15mm	20mm	25mm	32mm	40mm	50mm
Cv Value	5	6	13	20	28	39.5
Function	2 way, normally closed / normally open
Operation	Piston pilot operated
Body Material	Stainless steel 304
Seal Material	PTFE, FKM, EPDM
Working Temperature	PTFE: -20 to +180℃, FKM: -10 to +150℃, EPDM: -5 to +120℃
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Protection Class	IP65, IP67, Ex-proof
Insulation Class	F, H
Installation	Horizontal or Slant
