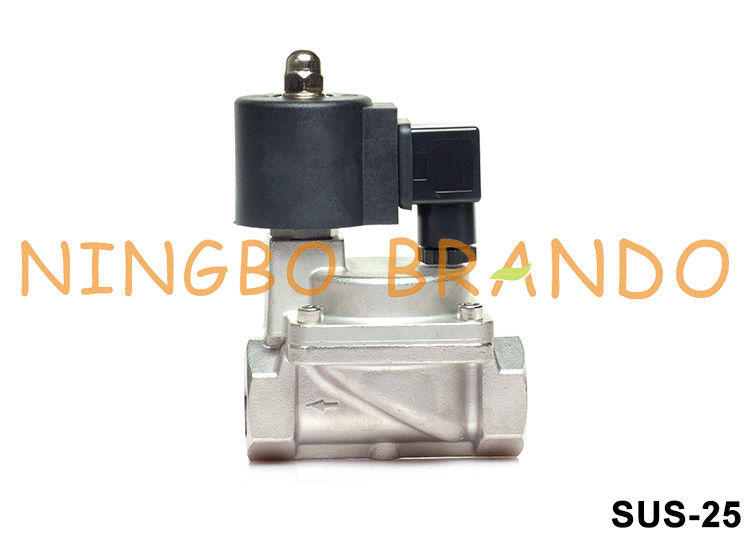

Name: 1'' 2 Way NC Pilot Piston Stainless Steel Solenoid Valve 24VDC 220VAC
Brand: Brando
SKU: SUS-25
Rating: 4.7 (184 reviews)

Home Products Stainless Steel Solenoid Valve

1'' 2 Way NC Pilot Piston Stainless Steel Solenoid Valve 24VDC 220VAC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	SUS-25

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability:	300000 sets per month

Contact Now

Detailed Product Description

Port Size:	1''	Orifice Size:	25mm
Function:	2 Way, NC	Operation:	Piston Pilot Operated
Body Material:	Stainless Steel	Seal Material:	PTFE ()
Voltages:	24VDC, 110VAC, 220VAC	Working Pressure Range:	0.05 To 6 MPa
High Light:	1'' Stainless Steel Solenoid Valve , Pilot Piston Stainless Steel Solenoid Valve , SUS-25 Solenoid Valve

1'' 2 Way NC Pilot Piston Stainless Steel Solenoid Valve 24VDC 220VAC

Pressure assisted 2/2 way stainless steel electric solenoid valves are designed to utilise the pressure difference across the valve ports by means of an internal hydraulic or servo circuit to move the internal sealing piston or diaphragm, sometimes called pilot operated valves, servo assisted valves, floating diaphragm or piston valves or even internal hydraulic operated electric valves. This design allows for the valve to operate with a smaller less energy consuming solenoid coil, are ideally suited for high pressure applications and are typically less expensive than a zero rated valve size for size. Ideal applications include open to atmosphere and high pressure systems. Most manufacturers and valve agents will offer port sizes ranging from 1/2'' thread through to 2'' BSP or NPT thread.

Main Dimension of SUS series Stainless Steel Solenoid Valve:

1'' 2 Way NC Pilot Piston Stainless Steel Solenoid Valve 24VDC 220VAC 0

Model	L	H	A	B	φC	D	K
SUS-15	69	121	14	48.5	48	83.5	1/2''
SUS-15-NO		128
SUS-20	79	133	18	55.5			3/4''
SUS-20-NO		140
SUS-25	96	142	21	70			1''
SUS-25-NO		149
SUS-32	109	152	27	70			1 1/4''
SUS-32-NO		159
SUS-40	128	167	31	95			1 1/2''
SUS-40-NO		174
SUS-50	150	183	38	100			2''
SUS-50-NO		190

Technical Data of SUS Series Stainless Steel Solenoid Valve:

Model	SUS-15	SUS-20	SUS-25	SUS-32	SUS-40	SUS-50
Model	SUS-15-NO	SUS-20-NO	SUS-25-NO	SIUS-32-NO	SUS-40-NO	SUS-50-NO
Port Size	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Orifice Size	15mm	20mm	25mm	32mm	40mm	50mm
Cv Value	5	6	13	20	28	39.5
Function	2 way, normally closed / normally open
Operation	Piston pilot operated
Body Material	Stainless steel 304
Seal Material	PTFE, FKM, EPDM
Working Temperature	PTFE: -20 to +180℃, FKM: -10 to +150℃, EPDM: -5 to +120℃
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Protection Class	IP65, IP67, Ex-proof
Insulation Class	F, H
Installation	Horizontal or Slant
