| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 7-03S-NO |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 20000 sets per month |
| Product Name: | Refrigeration Solenoid Valve | Port Size: | 3/8'' (10mm) |
|---|---|---|---|
| Connection: | Solder (ODF) | Function: | 2 Way Normally Open |
| Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | Operation: | Diaphragm Pilot Operated |
| Working Pressure Range: | 0.5 To 21 Bar | Kv: | 0.8 M³/h |
| High Light: | Normally Open Refrigeration Solenoid Valve,3/8'' Refrigeration Solenoid Valve,Refrigeration Solenoid Valve 12V |
||

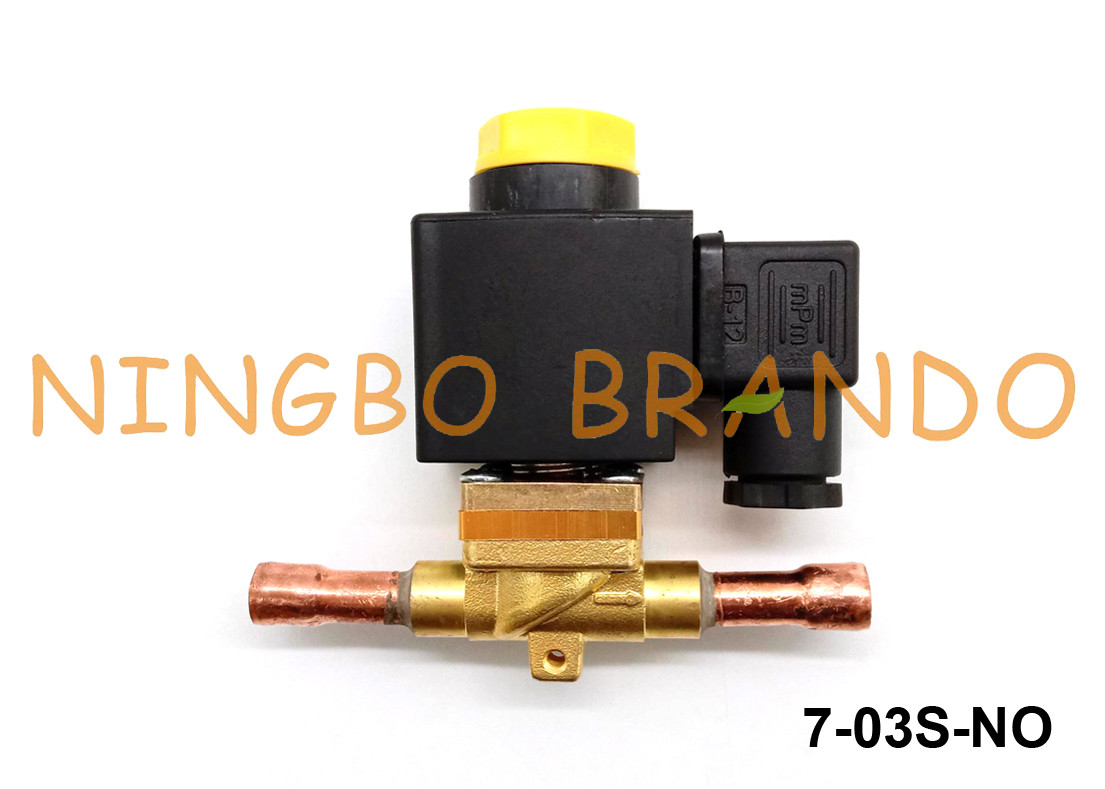

3/8'' Normally Open Refrigeration Solenoid Valve 12V 24V DC 110V 220V AC
This refrigeration solenoid valve is a 2 position 2 way normally open solenoid valve. The solenoid valve opens when the power is off and closes when the power is on. It is widely used in automatic control of refrigeration systems. This series of solenoid valves are diaphragm pilot operated. The solenoid valves adopt all-plastic encapsulated solenoid coils, which have excellent insulation, waterproof, seismic and corrosion resistance.
1. Working Refrigerant: R12, R22, R134a, R404, R407C, R410, R502, etc
2. Working Medium Temperature Range: -30 to +105 ℃
3. Max Working Pressure: 30 bar
Specifications of Normally Open Refrigeration Solenoid Valve:
