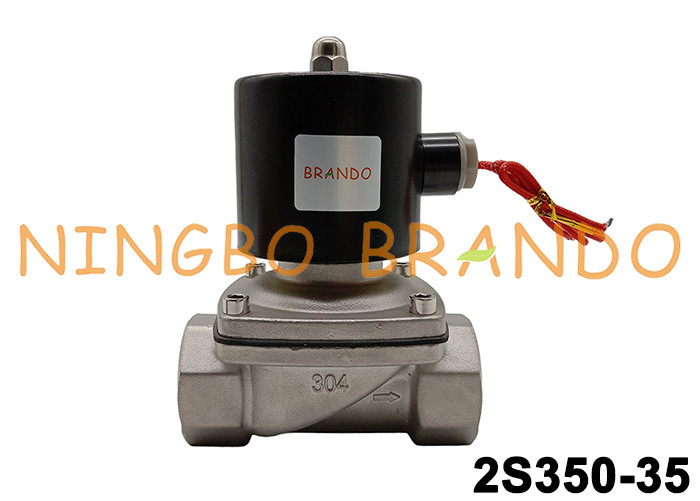

2S350-35 1-1/4" Threaded Electric Solenoid Valve SS304 Body 220 Volt

2S350-35 1-1/4" Threaded Electric Solenoid Valve SS304 Body 220 volt

2W350-35 :The port size is 1-1/4” inch female threaded. This Solenoid Valve can handle low viscosity fluids below 20 cst. The orifice size is 35mm and the CV value is 24. It requires little to no pressure to function but can withstand pressure up to 7 bar and temperatures as low as -5℃ and as high as +80℃. The seal material is NBR/Nitrile. This valve works in one direction and will not prevent media from moving backwards in the opposite direction.

Technical Data of 2W & 2S Solenoid Valve:

Main dimension of 2W & 2S Series Solenoid Valves:

2S350-35 1-1/4'' 2/2 Way NC SS304 Water Electric Solenoid Valve On Youtube:

Applicability

The fluid in the line must match the medium calibrated in the selected solenoid valve series.
The temperature of the fluid must be less than the calibration temperature of the solenoid valve selected.
Solenoid valves allow liquid viscosity to be generally below 20 CST, greater than 20 CST should be noted.
Working pressure difference, the maximum pressure difference of the pipeline should be less than 0.04MPa, such as ZS, 2W, ZQDF, ZCM series and other direct-acting and step-by-step direct-acting type; when the minimum working pressure difference is greater than 0.04MPa, the pilot type can be used. Differential) Solenoid valve; the maximum working pressure difference should be less than the maximum calibration pressure of the solenoid valve; the general solenoid valve is one-way operation, so pay attention to whether there is a back pressure difference, if there is a check valve installed.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
