| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | GT48 |
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 7 to 14 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 200000 pcs per month |
| Product Name: | Pneumatic Golden Turbine Vibrator | Rated Frequency: | 6000 To 46000 RPM |
|---|---|---|---|
| Centrifugal Force: | 130 To 12000 N | Working Temperature: | Up To 120℃ |
| Length: | 194mm | Width: | 86mm |
| Height: | 120mm | Port Size: | 3/8'' |
| High Light: | Pneumatic Vibrator GT48,Pneumatic Vibrator GT Series,Pneumatic Vibrator GT 48 |
||

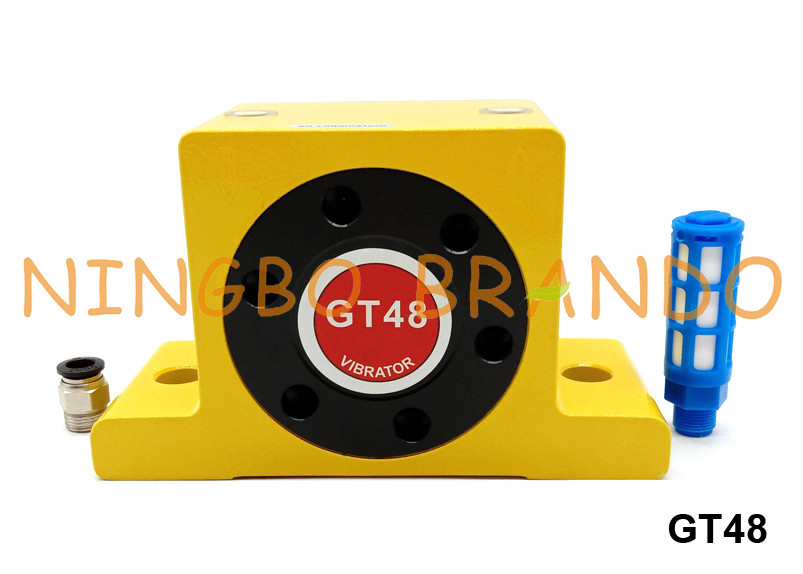

GT48 Findeva Type Industrial Pneumatic Air Turbine Vibrator GT Series
GT Series Pneumatic Golden Turbine Vibrators require no air lubrication, and feature high frequency vibration, low noise output, and lower air consumption than other types of pneumatic roatry vibrators. They are ideal for applications in the food & pharmaceutical industries, and other applications involving fine, dry powders that respond well to high frequency vibration. All GT Vibrators are constructed of lightweight extruded aluminum alloy bodies with hard coated turbine wheels and endplates, and pre-lubricated matched bearings for longer life. Standard GT Models use brass weights in the turbine; GT Models ending in “S” use heavy metal weights in the turbine for a lower frequency. BRANDO offers 17 different models in the GT Series, with centrifugal forces to over 2300 pounds.
Product Video of GT48 Pneumatic Golden Turbine Vibrator:
Main Dimension of GT Series Pneumatic Turbine Vibrators:
|
Model
|
A
(mm)
|
Width
(mm)
|
C
(mm)
|
D
(mm)
|
E
(mm)
|
F
(mm)
|
H
(Thread)
|
|
GT-4
GT-6
|
40
|
28
|
70
|
56
|
10.5
|
6
|
G1/8''
|
|
GT-8
GT-10
|
50
|
33
|
86
|
68
|
12
|
7
|
G1/8''
|
|
GT-13
GT-16
|
65
|
42
|
113
|
90
|
16
|
9
|
G1/4''
|
|
GT-20
GT-25
|
80
|
56
|
128
|
104
|
16
|
9
|
G1/4''
|
|
GT-30
GT-36
|
100
|
73
|
160
|
130
|
20
|
11
|
G3/8''
|
|
GT-40
GT-48
|
120
|
86
|
194
|
152
|
24
|
17
|
G3/8''
|
Technical Data of GT Series Pneumatic Turbine Vibrators:
|
Model
|
Vibrations
(x1000 RPM)
|
Centrifugal Force
(N)
|
Air Consumption
(l/min)
|
||||||
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
2 bar
|
4 bar
|
6 bar
|
|
|
GT-4
|
14.0
|
15.0
|
15.0
|
135
|
180
|
200
|
33
|
58
|
83
|
|
GT-6
|
11.5
|
12.0
|
12.5
|
130
|
175
|
210
|
|||
|
GT-8
|
36.0
|
42.0
|
46.5
|
990
|
2060
|
2910
|
46
|
80
|
112
|
|
GT-10
|
27.5
|
35.0
|
37.5
|
840
|
1390
|
2400
|
|||
|
GT-10-S
|
17.0
|
23.0
|
25.0
|
650
|
1350
|
1950
|
|||
|
GT-13
|
26.0
|
30.0
|
33.0
|
1400
|
2440
|
3730
|
120
|
200
|
290
|
|
GT-16
|
17.0
|
21.5
|
24.0
|
1220
|
2090
|
3160
|
|||
|
GT-16-S
|
11.5
|
15.5
|
17.0
|
1100
|
1900
|
2700
|
|||
|
GT-20
|
17.0
|
20.0
|
23.0
|
2170
|
4040
|
5520
|
185
|
325
|
455
|
|
GT-25
|
12.0
|
15.5
|
17.0
|
2120
|
3510
|
5070
|
|||
|
GT-25-S
|
8.5
|
11.0
|
13.0
|
2250
|
3600
|
4900
|
|||
|
GT-30
|
13.0
|
14.0
|
16.0
|
3380
|
5430
|
7540
|
330
|
530
|
745
|
|
GT-36
|
8.0
|
10.0
|
13.0
|
3290
|
5360
|
7190
|
|||
|
GT-36-S
|
6.1
|
7.2
|
8.3
|
4100
|
6200
|
7500
|
|||
|
GT-40
|
7.7
|
8.8
|
9.5
|
4300
|
7300
|
9800
|
425
|
700
|
970
|
|
GT-48
|
6.0
|
7.5
|
9.7
|
4900
|
7700
|
10500
|
|||
|
GT-48-S
|
-
|
5.6
|
6.3
|
-
|
7500
|
12000
|
|||
Construction of GT Series Pneumatic Turbine Vibrators:
