Name: GT32 Stainless Steel Pneumatic Air Turbine Vibrator for Bin Hopper Silo
Brand: Ningbo Brando Hardware Co., Ltd
SKU: GT32
Price: 49.10 USD
Availability: InStock

Home Products Pneumatic Vibrator

GT32 Stainless Steel Pneumatic Air Turbine Vibrator for Bin Hopper Silo

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	GT32

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Vibrator	Material:	Stainless Steel
Frequency:	13000 To 16000 VPM	Force:	3380 To 7540 N
Working Pressure:	2 To 6 Bar
Highlight:	Stainless Steel Pneumatic Vibrator GT32 , Stainless Steel Pneumatic Air Vibrator , Stainless Steel Pneumatic Turbine Vibrator

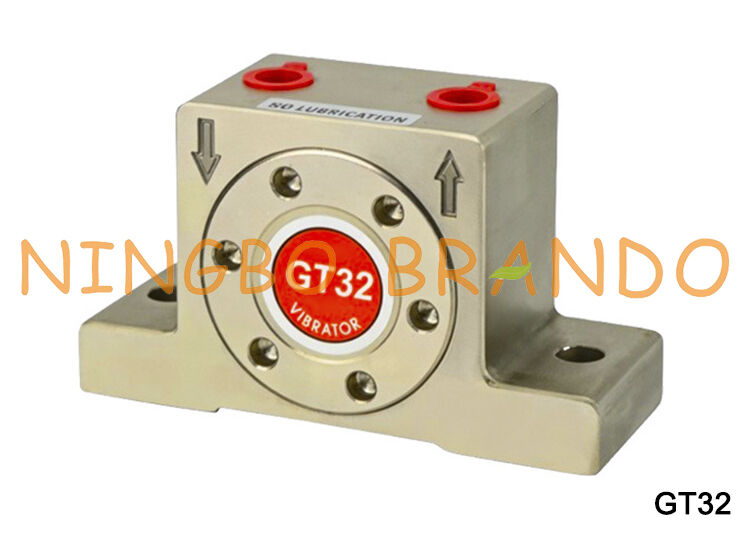

GT32 Stainless Steel Pneumatic Vibrator

GT series stainless steel pneumatic turbine vibrators feature a totally enclosed stainless steel housing, require no air lubrication, and feature high frequency vibration, low noise output, and lower air consumption than other types of pneumatic roatry vibrators. They are ideal for applications in the food and pharmaceutical industries, or any application involving dry powders that respond well to high frequency vibration. These stainless steel vibrators are suited for food-grade applications, wash-down, and corrosive environments.

Technical Data:

Model No	Vibrations (x1000 RPM)			Centrifugal Force (N)			Air Consumption (l/min)
Model No	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar	2 bar	4 bar	6 bar
GT4	14.0	15.0	15.0	135	180	200	33	58	83
GT6	11.5	12.0	12.5	130	175	210	33	58	83
GT8	36.0	42.0	46.5	990	2060	2910	46	80	112
GT10	27.5	35.0	37.5	840	1390	2400	46	80	112
GT13	26.0	30.0	33.0	1400	2440	3730	120	200	290
GT16	17.0	21.5	24.0	1220	2090	3160	120	200	290
GT20	17.0	20.0	23.0	2170	4040	5520	185	325	455
GT25	12.0	15.5	17.0	2120	3510	5070	185	325	455
GT30	13.0	14.0	16.0	3380	5430	7540	330	530	745
GT36	8.0	10.0	13.0	3290	5360	7190	330	530	745
GT40	7.7	8.8	9.5	4300	7300	9800	425	700	970
GT48	6.0	7.5	9.7	4900	7700	10500	425	700	970
GT60	4.0	5.7	7.7	6310	9580	14800	650	790	1260

Main Dimension:

GT32 Stainless Steel Pneumatic Air Turbine Vibrator for Bin Hopper Silo

Model No	A (mm)	Width (mm)	C (mm)	D (mm)	E (mm)	F (mm)	H (Thread)
GT4 GT6	40	28	70	56	10.5	6	G1/8''
GT8 GT10	50	33	86	68	12	7	G1/8''
GT13 GT16	65	42	113	90	16	9	G1/4''
GT20 GT25	80	56	128	104	16	9	G1/4''
GT30 GT36	100	73	160	130	20	11	G3/8''
GT40 GT48	120	86	194	152	24	17	G3/8''
GT60	140	95	240	188	28	22	G3/8''
