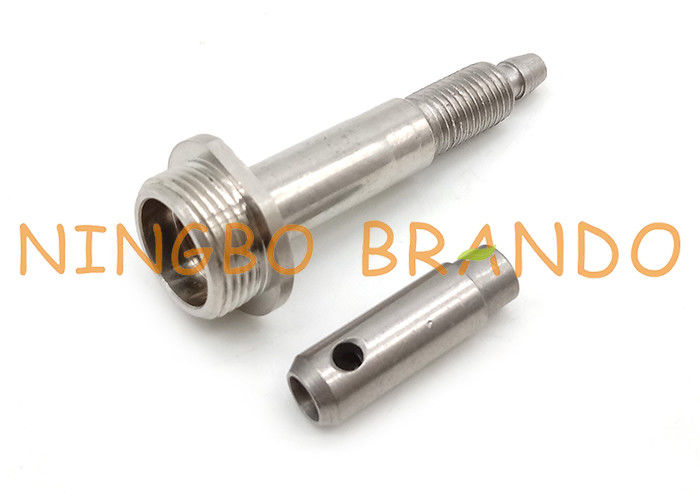

3/2 Way Normally Closed SS 304 9mm OD Solenoid Valve Armature

3/2 Way Normally Closed SS 304 9mm OD Solenoid Valve Armature

  • 3/2 Way Normally Closed SS 304 9mm OD Solenoid Valve Armature
3/2 Way Normally Closed SS 304 9mm OD Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC309126832
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Fittings Guide Tube Outer Diameter: 9.0mm
Installation Height For Coil Assembling: 24.3mm Plunger Seal For Orifice Diameter: /
Guide Tube Material: Stainless Steel Seal Material: NBR
Mounting Type: Thread Voltage: AC, DC All Available
Position And Way: 3/2 Way Applicable: Solenoid Valve
High Light:

3/2 Way Solenoid Valve Armature

,

9mm OD Solenoid Valve Armature

,

Flow Control Valve Solenoid Plunger

3/2 Way Normally Closed SS 304 9mm OD Solenoid Valve Armature



Unlike a two-way valve, a three-way valve usually opens two ports at any time, and which port opens when the coil is de-energized determines the function.

A normally closed (NC) three-way valve will block the path between the inlet and outlet until the coil is energized. When the power is off, the outlet port is connected to the exhaust port. After the coil is energized, the path is blocked, and the inlet and the outlet are connected instead.

Normally open (NO) indicates the valve is open and when the coil is deenergized, the fluid from the inlet to the outlet, and the exhaust port is clogged. When the coil is energized, the intake port closes, opens the flow path from the exhaust port of the exhaust port.

Universal valve may be piped through the NC or NO, may also be used as diverting or select functions, since these valves can accept flow in either direction. Please note that, compared with the equivalent NC or NO valve, which typically reduces the maximum working pressure.



Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando Solenoid plungers are available in numerous designs and have been tested to meet rigorous performance requirements for solenoid valves. These solenoid plungers can be utilized in various applications including, air and fluid power applications, heating and cooling system regulation units, industrial, and automotive applications.



Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:9.0mm
Installation Height for Coil Assembling:24.3mm
Guide Tube Material:Stainless Steel
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:3/2 Way
Non-working Status:Normally Close



Dimension of BAPC309126832 Armature Assembly:



Dimension of BAPC309126832 Armature Assembly:





Technical Data:

Model Number
BAPC309041212
Guide Tube Outer Diameter
9.0mm
Installation Height for Coil Assembling
39.3mm
Plunger Seal for Orifice Diameter
/
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Threaded
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing





Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
