NBR Seal M12 Thread SS304 8mm OD Pneumatic Solenoid Valve Armature

NBR Seal M12 Thread SS304 8mm OD Pneumatic Solenoid Valve Armature

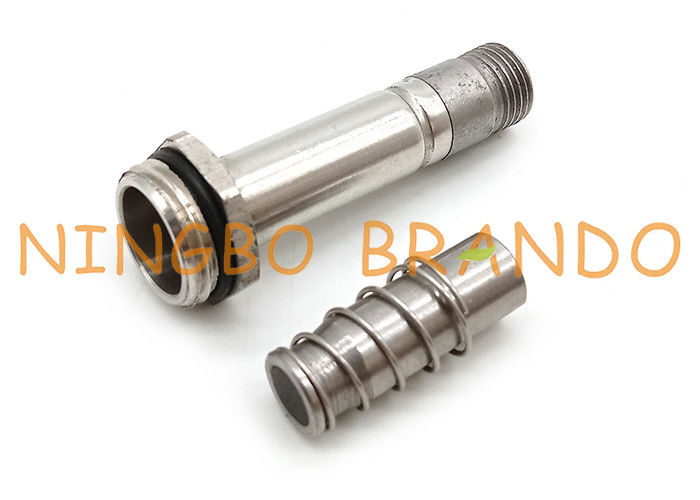

This is 1 set of solenoid valve armature assembly, including 1 x M12x0.5 thread seat stainless steel plunger tube, 1 x stainless steel magnetic moving core with NBR seal and 1 x stainless steel spring. This stem plunger assembly is designed for 4V100 series pneumatic solenoid valves, such like 4V110-06, 4V120-06, 4V130C-06. The armature tube outer diameter is 8mm, so it is suitable to 8mm inner hole diameter solenoid valve coil. The standard plunger's seal material is NBR but VITON, HNBR, EPDM, Silicone are all available to customize.

Details of Solenoid Valve Armature Assembly:

  Copper Shading Ring              M12x0.5 Thread Seat

           Plunger Slot                         NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
