Industrial Textile Machine Inkjet Printer Solenoid Valve Armature

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature
video
Industrial Textile Machine Inkjet Printer Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC211241522
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Function: 2 Way Normally Closed Seat Type: Flange
Plunger Tube Material: Stainless Steel 304 Plunger Tube OD: φ11.2mm
Seal Material: NBR Shading Ring Material: Copper
Voltage: AC, DC All Available Application EXamples: ASCO Type Red Hat Solenoid Valve
Valve Model: 3UK48, 3UK50, 3UK51, 3UK53, 3UK56, 8210G001, 8210G002
High Light:

Industrial Textile Machine Solenoid Valve Armature

,

Inkjet Printer Solenoid Valve Armature

,

ASCO Type K302273

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature

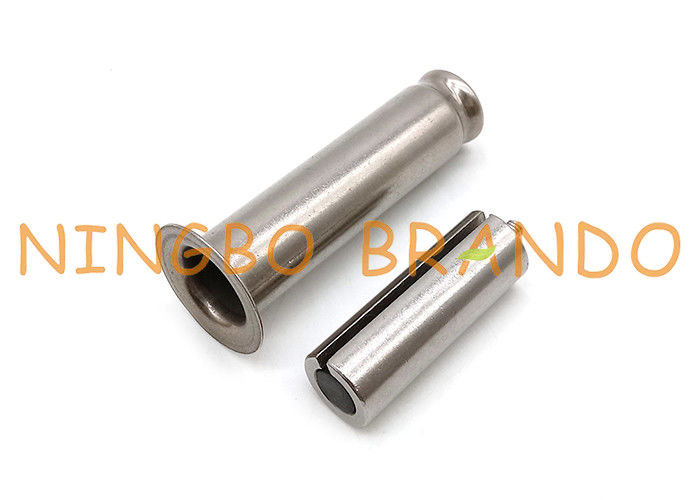

This armature assembly is designed for ASCO type red hat solenoid valve such like 3UK48, 3UK50, 3UK51, 3UK53, 3UK56, 8210G001 and 8210G002 series solenoid valves. The stem plunger set including 1 x stainless steel armature tube, 1 x stainless steel plunger with NBR seal and 1 x stainless steel spring. The armature tube outer diameter is 11mm, so it is suitable to 11mm inner hole diameter solenoid valve coil. The standard plunger's seal material is NBR, but HNBR, VITON, EPDM, Silicone are all available to customize.



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC211241522
Guide Tube Outer Diameter
11.2mm
Installation Height for Coil Assembling
41.8mm
Plunger Seal for Orifice Diameter
6.2mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Flange
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Applicatoin Examples
ASCO Red Hat Solenoid Valves:
3UK48, 3UK50, 3UK51, 3UK53, 3UK56, 8210G001, 8210G002
Customized Service
Provided, welcome show us sample or drawing


Main dimension of Solenoid Valve Armature Assembly:
Industrial Textile Machine Inkjet Printer Solenoid Valve Armature 0

Details of Solenoid Valve Armature Assembly:

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature 1

      Copper Shading Ring                                Flange Seat

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature 2

                  Plunger Slot                                  NBR Seal



Brando Factory Production of Solenoid Valve Armature Assembly:

Industrial Textile Machine Inkjet Printer Solenoid Valve Armature 3



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.
