2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly

2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly

  • 2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly
2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC211031533
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Plunger Tube OD: 11.0mm Plunger Seal For Orifice Diameter: 4.5mm
Installation Height For Coil Assembling: 32.0mm Function: 2 Way 2 Position, Normally Closed
Seat Type: Thread Plunger Tube Material: Stainless Steel 304
Seal Material: VITON (FKM) Voltage: AC, DC All Available
High Light:

2/2 Way Armature Assembly

,

Stainless Steel Armature Assembly

,

FKM Seal Solenoid Stem

2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly

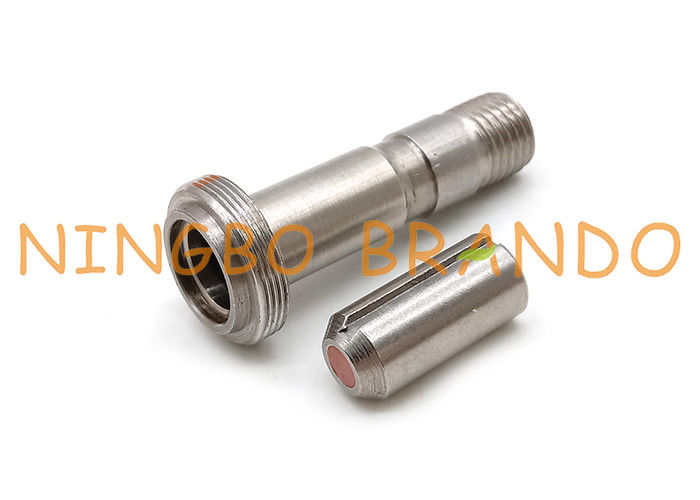

This is armature assembly which includes a stainless steel armature tube, a stainless steel magnetic plunger with viton seal and a spring. It is designed for a 2 way normally closed solenoid valve that can control high temperature mediums. The working temperature range is about -10 to +150℃.



Product Features:

1. The plunger tube is stainless steel 304;
2. The tube seat is thread;
3. The plunger adopts rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting;
4. Spring: Rustproof SUS304 stainless steel, with good performance of restore.
5. Seals: Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



Data of Solenoid Valve Armature Assembly:

Model Number
BAPC211031533
Guide Tube Outer Diameter
11.0mm
Installation Height for Coil Assembling
32.0mm
Plunger Seal for Orifice Diameter
4.5mm
Guide Tube Material
Stainless Steel
Seal Material
VITON (NBR, HNBR, EPDM, Silicone, all available)
Connection Type
Thread
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing


Dimension of Solenoid Valve Armature Assembly:

2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly 0

Brando Factory Production of Solenoid Valve Armature Assembly:

2/2 Way Stainless Steel Solenoid Valve Kit Tube Armature Assembly 1



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Product Features of Solenoid Valve Armature Assembly:


1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.



2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.



3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.



4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.



5 Shading ring:
Cooper and silver material available.



6. Washer and retaining nut provided if has demands.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
