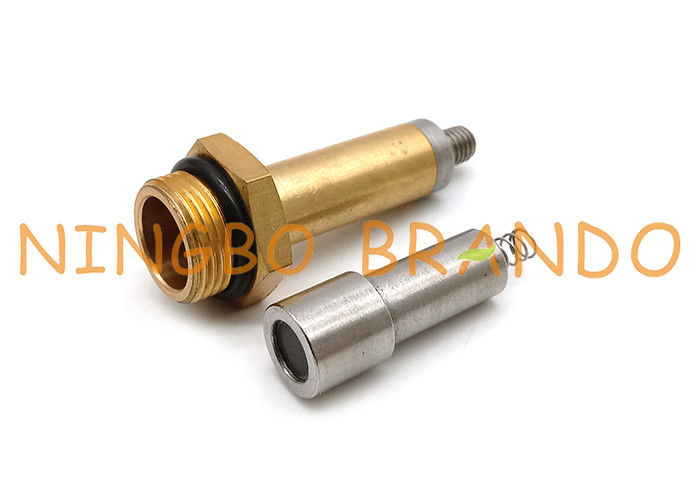

Reducer Pressure Shut Off Solenoid Valve 9mm OD Plunger Assembly

Reducer Pressure Shut Off Solenoid Valve 9mm OD Plunger Assembly

Condition:New
Applicable Industries:LPG/CNG
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:9.5mm
Installation Height for Coil Assembling:27mm
Plunger Seal for Orifice Diameter:6.4mm
Guide Tube Material:Brass
Seal Material:NBR
Mounting Type:Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close
Application:1225 1226 Petrol Valve, 1203-01 MV LPG Valve

Dimension of BAPC209329221 Armature Assembly:

Technical Data:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
