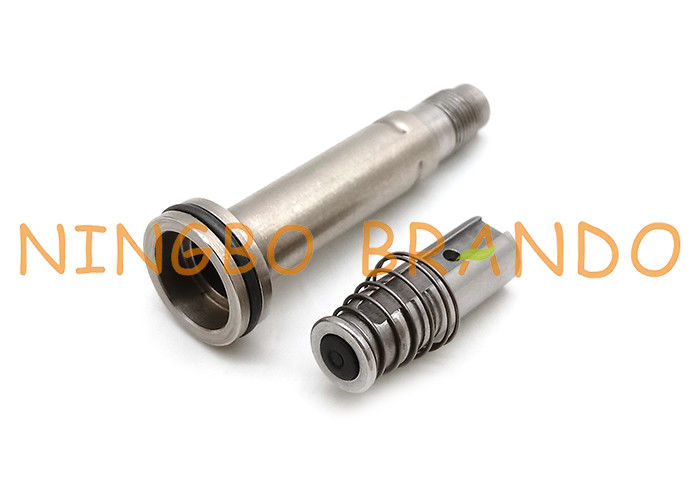

Medical Anesthesia Delivery Monitor 7mm OD Solenoid Valve Armature

Medical Anesthesia Delivery Monitor 7mm OD Solenoid Valve Armature

Medical Anesthesia Delivery Monitor 7mm OD Solenoid Valve Armature
video
Medical Anesthesia Delivery Monitor 7mm OD Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC208046011
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Fittings Guide Tube Outer Diameter: 7.3mm
Installation Height For Coil Assembling: 27.3mm Plunger Seal For Orifice Diameter: 4.1mm
Guide Tube Material: Stainless Steel Seal Material: NBR
Mounting Type: Flange Voltage: AC, DC All Available
Position And Way: 2/2 Way Applicable Industries: Solenoid Valve
High Light:

Medical Solenoid Valve Armature

,

7mm OD Solenoid Valve Armature

,

Medical Plunger Stem

Medical Anesthesia Delivery Monitor 7mm OD Solenoid Valve Armature



Condition:New
Applicable Industries:Solenoid Valve
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:7.3mm
Installation Height for Coil Assembling:27.3mm
Plunger Seal for Orifice Diameter:4.1mm
Guide Tube Material:Stainless Steel
Seal Material:NBR
Mounting Type:Flange
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close



Dimension of BAPC207024001 Armature Assembly:



Dimension of BAPC207024001 Armature Assembly:





Technical Data:

Model Number
BAPC207024001
Guide Tube Outer Diameter
7.3mm
Installation Height for Coil Assembling
27.3mm
Plunger Seal for Orifice Diameter
4.1mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing





Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.



More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)


Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
