EVRA 40 1 1/2'' 2'' Ammonia Plant Refrigeration Solenoid Valve

EVRA 40 1 1/2'' 2'' Ammonia Plant Refrigeration Solenoid Valve

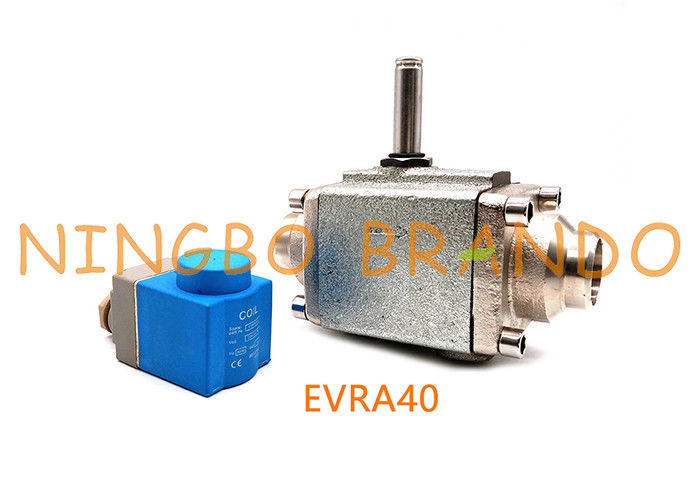

The shown is EVRA 40 refrigeration solenoid valve for ammonia, 1 1/2'', 2'' ODF flange port size, Servo Piston Operated, 2 way normally closed, 24V DC, 110V AC, 220V AC, 230V AC voltages (other voltages can be customized), ordering code: 042H1128, 042H1132, 042H1142, 042H1143.

1. Refrigeration Solenoid Valve:
* Danfoss Type: EVR 3, EVR 6, EVR 10, EVR 15, EVR 20, EVR 22, EVR 25, EVR 32, EVR 25, EVRA 25, EVRA 32, EVRA 40;
* Castel Type: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.

2. Refrigerator Solenoid Valve: FDF, SDF ......

3. Expansion Valve: Thermostatic / Thermal Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......

Data of Danfoss Type Ammonia Refrigeration Valves:

EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately.

EVRA 25, 32 and 40 are servo operated piston valves.The valves are closed with currentless coil.The servo piston with main valve plate closes against the valve seat by means of the differential pressure between inlet and outlet side of the valve, the force of the compression spring and possibly the piston weight. When current to the coil is switched on, the pilot orifice opens. This relieves the pressure on the piston spring side of the valve. The differential pressure will then open the valve. The minimum differential pressure needed for full opening of the valves is 0.2 bar.

Main dimension of EVRA 40 Ammonia Refrigeration Valve:

Product video of Danfoss Type Ammonia Solenoid Valves:

More Refrigeration Valve For you to choose:

   Danfoss Type Solenoid Valve       Ammonia Refrigeration Valve     Castel Type Solenoid Valve

Refrigeration Solenoid Valve Coil          Expansion Valve               Refrigerator Solenoid Valve
