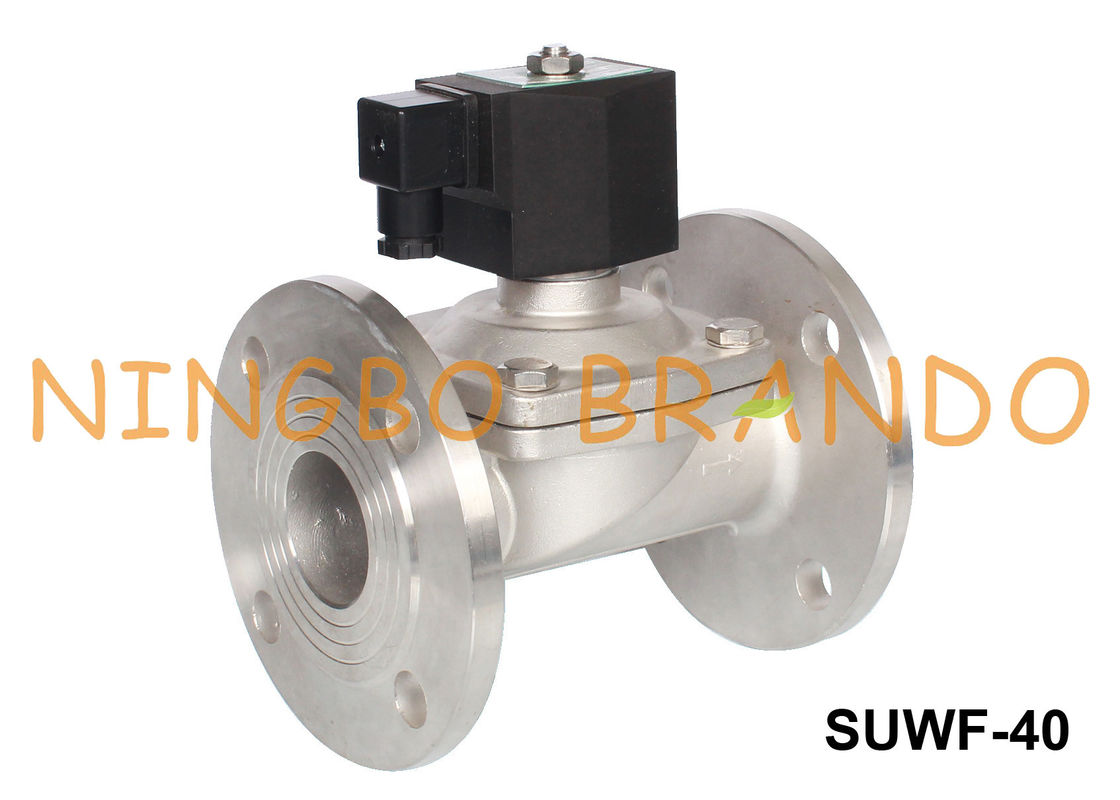

1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V

1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V

  • 1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V
1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: SUWF-40
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Pipe Connection: Flanged Port Size: 1 1/2''
Orifice Size: 40mm Operation Mode: 2 Way Normally Closed
Action: Direct Lift Diaphragm Working Fluids: Water, Air, Light Oil, Gas, Vacuum
Body Material: Stainless Steel Seal Material: NBR, FKM, EPDM
Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Pressure Range: 0 To 1 MPa
High Light:

1.5'' Stainless Steel Solenoid Valve

,

1.5'' Solenoid Valve Water

,

Flanged Solenoid Valve 1.5''

1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V​



Product Features:

1. SUWF series is direct, multiplex, connected diaphragm, conductive and normally closed (NC) 2/2 way solenoid valve;
2. Able to be operated directly under low pressure;
3. Availability of fluid type: water, air, light oil, gas, vacuum;
4. Acceptable for customization Viton (130℃) , Silicone (130℃) and EPDM (130℃) for plug and disphragm.



Ordering Code of Solenoid Valve:

1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V 0


Technical Data of Solenoid Valve:

UWF Series
(Brass)
UWF-15
UWF-20
UWF-25
UWF-35
UWF-40
UWF-50
SUWF Series
(SS304)
SUWF-15
SUWF-20
SUWF-25
SUWF-35
SUWF-40
SUWF-50
Pipe Size
1/2''
3/4''
1''
1 1/4''
1 1/2''
2''
Orifice Size
16mm
20mm
25mm
35mm
40mm
50mm
Body Material
Brass, Stainless Steel
Diaphragm Material
NBR, FKM, EPDM
Fluid
Water, Air, Light Oil, Gas, Vacuum
Function
2 Way, Normally Closed
Action
Direct Liftng Diaphragm
Working Pressure
0 to 1 MPa
Fluid
Temperature
-5 to +80℃ (NBR), -5 to +150℃ (FKM)
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC


Main Dimension of Solenoid Valve:

                                1.5'' Flanged Stainless Steel Solenoid Valve Water 24V 220V 1

SUWF Series
(SS304)
Orifice Size
H
L
D
D1
n-d
SUWF-15
16
145
115
95
65
4-φ14
SUWF-20
20
145
115
105
75
4-φ14
SUWF-25
25
166
135
110
85
4-φ14
SUWF-35
35
205
148
135
100
4-φ18
SUWF-40
40
218
160
145
110
4-φ18
SUWF-50
50
228
202
156
125
4-φ18
