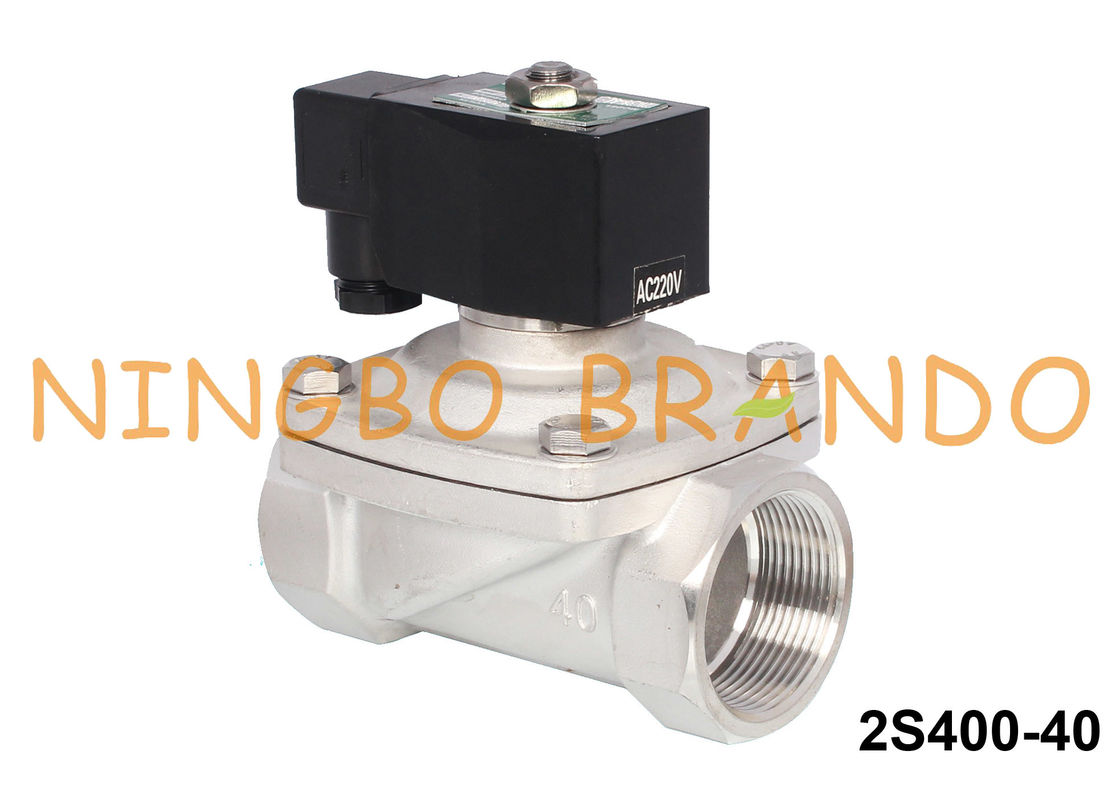

Name: 1.5 Inch Electric Water Solenoid Valve Stainless Steel 24VDC 220VAC
Brand: Brando
SKU: 2S400-40
Rating: 4.7 (176 reviews)

Home Products Stainless Steel Solenoid Valve

1.5 Inch Electric Water Solenoid Valve Stainless Steel 24VDC 220VAC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	2S400-40

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1 1/2''	Orifice Size:	40mm
Operation Mode:	2 Way Normally Closed	Action:	Direct Lifting Diaphragm
Working Fluids:	Air, Water, Oil, Gas	Body Material:	Stainless Steel
Diaphragm Material:	NBR	Temperature Range::	-5 ℃ To +80 ℃
Pressure Range:	0 To 1 MPa	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:	1.5 inch Solenoid Valve Water , 1.5 inch Solenoid Valve Stainless Steel , 2S400-40 Solenoid Valve

1.5 Inch Electric Water Solenoid Valve Stainless Steel 24VDC 220VAC

Product Features:

1. Function: 2 Way Normally Closed, 2 Way Normally Open
2. Operation: Direct Lifting Diaphragm
3. Port Sizes: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc;
4. Orifice Sizes: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm
5. Working Medium: Water, Air, Gas, Oil, etc.

6. Valve Body Material: Brass, Stainless Steel
7. Valve Seal Material: NBR, EPDM, FKM;
8. Solenoid Coil Voltages: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc;
9. Solenoid Coil Protection Class: IP65, IP67, Ex Proof, etc;

Ordering Code of Solenoid Valve:

1.5 Inch Electric Water Solenoid Valve Stainless Steel 24VDC 220VAC 0

Technical Data of Solenoid Valve:

Model	2S160-10	2S160-15	2S200-20	2S250-25	2S350-35	2S400-40	2S500-50
Model	2S160-10-NO	2S160-15-NO	2S200-20-NO	2S250-25-NO	2S350-35-NO	2S400-40-NO	2S500-50-NO
Port Size	3/8''	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Orifice Size	16		20	25	35	40	50
Cv Value	4.8		4.8	12	24	29	48
Medium	Air, Water, Oil, Gas
Action	Direct Lifting Diaphragm
Function	2 Way, Normally Closed (NC), Normally Open (NO)
Viscocity	20 cst Below
Pressure	Air: (1 to 1MPa), Water (0 to 0.7MPa), Oil (0 to 0.9MPa), Normally Open (0 to 0.8MPa)
Temperature	NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
Body Material	Stainless Steel
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Type	Waterproof Coil, Round Coil, Square Coil, etc.

Main Dimension of Solenoid Valve:

3/4'' 2 Way NC Electric Brass Solenoid Valve Water 24VDC 220VAC 1

Model	Port Size	A	B	C
2S160-10	3/8''	66	56	103
2S160-10-NO				125
2S160-15	1/2''	66	56	103
2S160-15-NO				125
2S200-20	3/4''	73	56	110
2S200-20-NO				132
2S250-25	1''	98	73	117
2S250-25-NO				139
2S350-35	1 1/4''	118	93	160
2S350-35-NO				180
2S400-40	1 1/2''	118	93	160
2S400-40-NO				180
2S500-50	2''	156	124	188
2S500-50-NO				209
