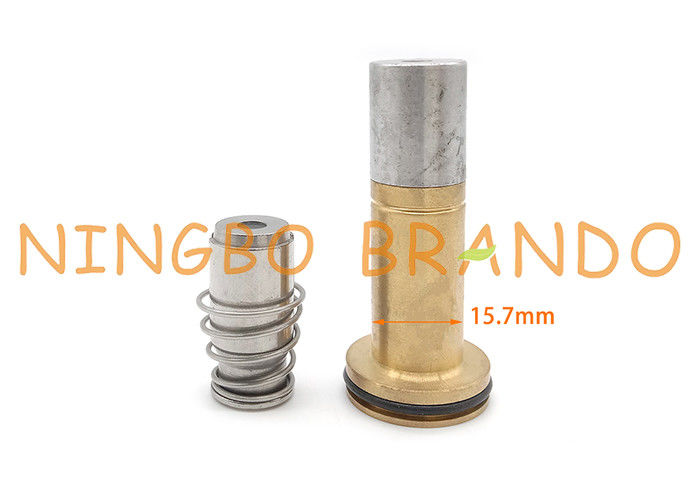

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature
video
AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC315751414
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Position And Way: 3 Way 2 Position Non-working Status: Normally Closed
Voltage: AC, DC All Available Plunger Tube OD: φ15.7mm
Seat Type: Flange With O-ring Groove Plunger Tube Material: Stainless Steel 304
Seal Material: NBR Application: LPG CNG Solenoid Valve
High Light:

3 Way Solenoid Valve Armature

,

15.7mm OD Solenoid Valve Armature

,

LPG CNG Solenoid Stem

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature



Brando is a solenoid valve amrature assembly professional manufacturer and exporter in Ningbo, China. Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.



Our armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to function: 2/2 way NC, 2/2 way NO, 3/2 way NC, 3/2 way NO.

* According to connection: thread, flange



Main dimension of Solenoid Valve Armature Assembly:

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature 0

Details of Solenoid Valve Armature Assembly:

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature 1

              3/2 Way NC                       Flange with O-ring groove

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature 2

                  Plunger Slot                             NBR Seal



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC315751414
Guide Tube Outer Diameter
15.7mm
Installation Height for Coil Assembling
51.7mm
Plunger Seal for Orifice Diameter
9.2mm
Guide Tube Material
Brass
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Flange with O-ring groove
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Application Examples
LPG, CNG
Customized Service
Provided, welcome show us sample or drawing


Brando Factory Production of Solenoid Valve Armature Assembly:

AXOR ACTROS Truck Gearbox 3 Way 15.7mm OD Solenoid Valve Armature 3



More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)

FAQ:



How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.



What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.



How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.
