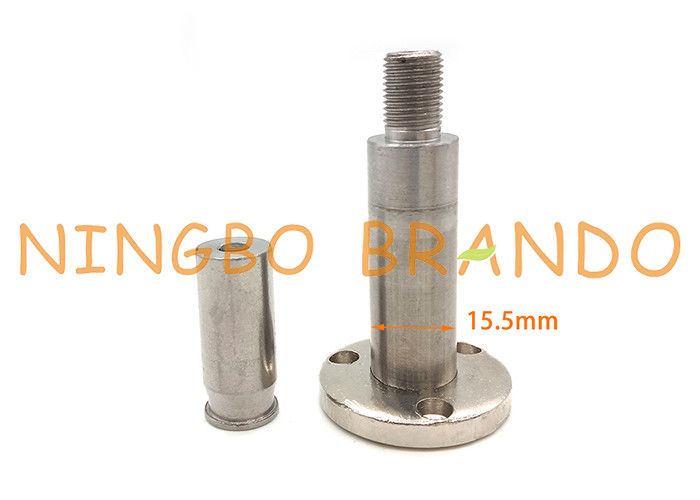

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube
video
Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC315546310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Position And Way: 3 Way 2 Position Non-working Status: Normally Close
Voltage: AC, DC All Available Plunger Tube OD: φ15.5mm
Seat Type: Mounting Plate Plunger Tube Material: Stainless Steel
Seal Material: NBR (Nitrile)
High Light:

Truck Solenoid Valve Plunger Tube

,

3 Way NC Plunger Tube

,

Truck Solenoid Valve Stem



Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube​



Brando provides customized solenoid valve armature services for various types of solenoid valves.



Our solenoid valve armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.



Our solenoid valve armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.



The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection



Main dimension of Solenoid Valve Armature Assembly:

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube 0



Details of Solenoid Valve Armature Assembly:

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube 1

               3/2 Way NC                              Mounting Plate

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube 2

             Plunger Slot                                     NBR Seal



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC315546310
Guide Tube Outer Diameter
15.5mm
Installation Height for Coil Assembling
42.1mm
Plunger Seal for Orifice Diameter
8.3mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Flange
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing


Brando Factory Production of Solenoid Valve Armature Assembly:

Truck Solenoid Valve Accessories 3 Way NC Armature Plunger Tube 3



More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)

FAQ:



How can you tell if your solenoid is bad?
If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out coil, you need to troubleshoot the valve solenoids.



What is a solenoid?
A solenoid is an electric coil that is wrapped around a ferromagnetic substance (such as iron) that acts as an electromagnet when the current is passed through it.



How does a solenoid work?
When the electric current is passed through the coil, an electromagnetic field is created. This electromagnetic field causes the plunger to move up or down. This mechanism is used by solenoid valves to open or close the valve.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
