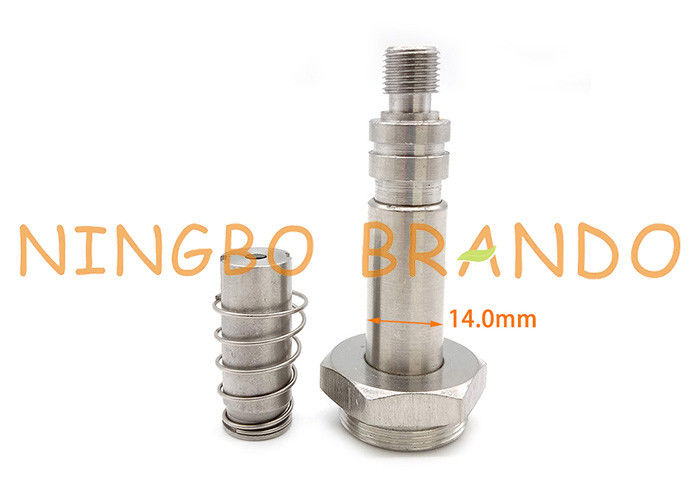

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature
video
Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BAPC314044759
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Position And Way: 3 Way 2 Position Non-working Status: Normally Closed
Seat Type: Thread Plunger Tube Material: Stainless Steel 304
Plunger Tube OD: φ14mm Seal Material: NBR
Shading Ring: Copper Voltage: AC, DC All Available
High Light:

14mm OD Solenoid Valve Armature

,

Stainless Steel Solenoid Valve Armature

,

Flow Control Valve Stem

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature



The solenoid consists of a coil of wire wound in the form of a cylinder around the bobbin. When an electrical current is introduced, it resembles a bar magnet. When energized by an electrical signal, a magnetic field builds up which attracts the movable plunger to the polepiece against the tension of the main plunger spring. When de-energized, the magnetic field dissipates and the plunger returns to its original position, under the action of the main plunger spring.



In order to be usable on AC current as well as DC, the polepiece contains a shading ring to average the alternating sine wave and minimize AC hum. (Note - It is not necessary to use a shading ring for DC applications as DC current does not produce an alternating wave function.) The flowing media is normally permitted to enter the area between the plunger and plunger guide tube, and caution should be used to assure that these components are compatible with the media when selecting a valve.



Main dimension of Solenoid Valve Armature Assembly:

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature 0

Details of Solenoid Valve Armature Assembly:

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature 1

               3/2 Way NC                              Thread Seat

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature 2

             Plunger Slot                                         NBR Seal



Technical data of Solenoid Valve Armature Assembly:

Model Number
BAPC314044759
Guide Tube Outer Diameter
14.0mm
Installation Height for Coil Assembling
47.5mm
Plunger Seal for Orifice Diameter
7.5mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Thread
Voltage
All range of AC and DC available
Position and Way
3/2 Way
Non-working Status
Normally Closed
Customized Service
Provided, welcome show us sample or drawing


Brando Factory Production of Solenoid Valve Armature Assembly:

Stainless Steel 14mm OD 3 Way Flow Control Solenoid Valve Armature 3

More Solenoid Valve Armature Assembly for you to choose:



*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

photobank (10)photobank (11)photobank (12)photobank (8)



*According to tube material: Brass, Stainless Steel

photobank (8)photobank (12)photobank (18)photobank (11)



*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

photobank (14)photobank (16)photobank (17)photobank (10)



Features of Armature Assembly:



The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection
