Automobile Solenoid Valve Repair Kit 3 Way NC NBR Seal Armature Stem

Automobile Solenoid Valve Repair Kit 3 Way NC NBR Seal Armature Stem

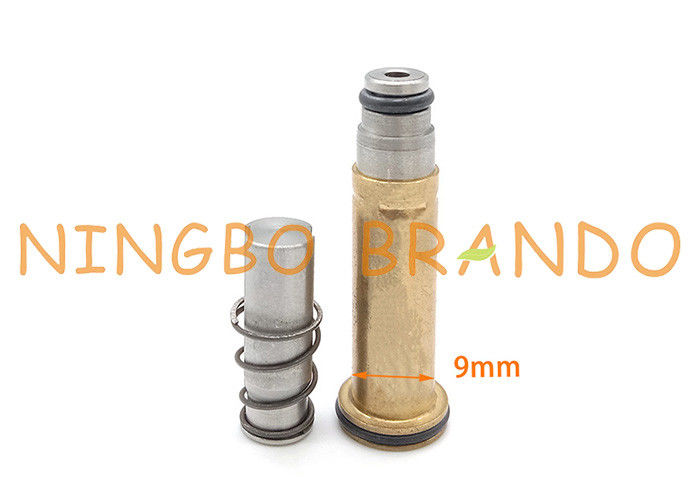

This is solenoid stem armature plunger for DAF gearbox solenoid valve, such like 1457275, 1379772.

A solenoid valve is made up of two basic functional units.They are

(1) The solenoid, an electro-magnet with a plunger.
(2)A valve containing an orifice in which a disc or plug is positioned to stop or allow flow.

The valve is opened or closed by movement of the magnetic plunger,or core, which is drawn into the solenoid when the coil is energised (an electric current is passed through it). The solenoid valve opens when energized allowing instrument air to pass through, the valve closes when the solenoid is de-energized preventing instrument air from passing through but vented to the atmosphere.

Solenoid valves have a solenoid mounted directly on the valve body with the solenoid core attached to the valve stem.The core is enclosed and free to move in a permanently sealed tube inside the solenoid coil.This construction provides a compact, leak tight assembly.

Details of Solenoid Valve Armature Assembly:

  3 Way Normally Closed                   Flange Seat

           Plunger Slot                                NBR Seal

Technical data of Solenoid Valve Armature Assembly:

Main dimension of Solenoid Valve Armature Assembly:

Brando Factory Production of Solenoid Valve Armature Assembly:

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.

Product Features of Solenoid Valve Armature Assembly:

The main characteristics of the armature of solenoid valve can be reflected in the following aspects.

1. The static iron core is made of high magnetic conductivity, low remanence, antirust and corrosion-resistant materials, durable and responsive

2. The tube is made of copper or stainless steel, adopt rolling technology, and make the connection more closer and firmer.

3. The spring material is the imported stainless steel spring special steel wire, with stable pressure and good recovery performance

4. Sealing materials can be selected according to your different requirements

5. 3/2, 2/2 way; NO/NC; AC/DC various specifications for selection

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
