Dust Collector Pulse Jet Valve Solenoid Stem For Best Nr.0200 Coil

Dust Collector Pulse Jet Valve Solenoid Stem For Best Nr.0200 Coil

Brando provides customized solenoid valve armature services for various types of solenoid valves. Our solenoid valve armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available. Our solenoid valve armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.

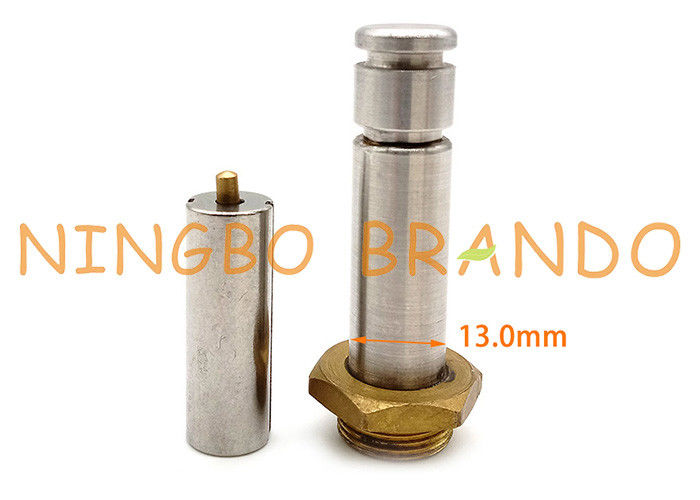

The shown is one kind of solenoid stem for pulse jet valve. Brando supply many brand pulse valve repair kit replacement armature, like BFEC (SBFEC), Goyen, ASCO, Turbo, Mecair, Norgren Buschjost, JOIL, AUTEL, Taeha and other Chinese brand. And we also supply related solenoid coils, diaphragms and pulse jet valves.

Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve.

Detailed Images of Pulse Valve Armature:

Dimension & Data of Pulse Valve Armature:

Dimension	Model	BAPC213043001
	Funtion	2 Way, Normally Closed
	Seat	M16x1 Thread
	Core Tube Material	Stainless Steel
	Seal Material	NBR
	Voltage	AC, DC
	Fitted Coil	Best-Nr.0200
	Fitted Valve	Pulse Valve

Dimension	Model	Best-Nr.0200
	Voltage	24VDC, 220VAC
	Power	18VA, 15W
	Fitted Armature Plunger	BAPC213043001
	Fitted Valve	Pulse Valve

Brando Solenoid Valve Armature Production Video:

Related product supply:

* Solenoid Valve Coil:

* Diaphragm Repair Kit:

* Pulse Jet Valve:
