| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | FDF2A94 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Orifice Size: | 1.9mm |
|---|---|---|---|
| Tube OD (mm): | 6.35 | Tube OD (inch): | 1/4'' |
| Normal Position: | NC (Normally Closed) | Actuation: | Direct Acting |
| Max Operating Pressure: | 4.5 MPa | Wiring Type: | Flying Leads |
| Voltages: | 24VAC, 110VAC, 220VAC | Application: | Air Conditioner, Heat Pump, Ice Maker, Freezer, Cooler, Etc. |
| High Light: | Sanhua FDF2A,Sanhua FDF2A94,Sanhua Refrigeration Solenoid Valve |
||

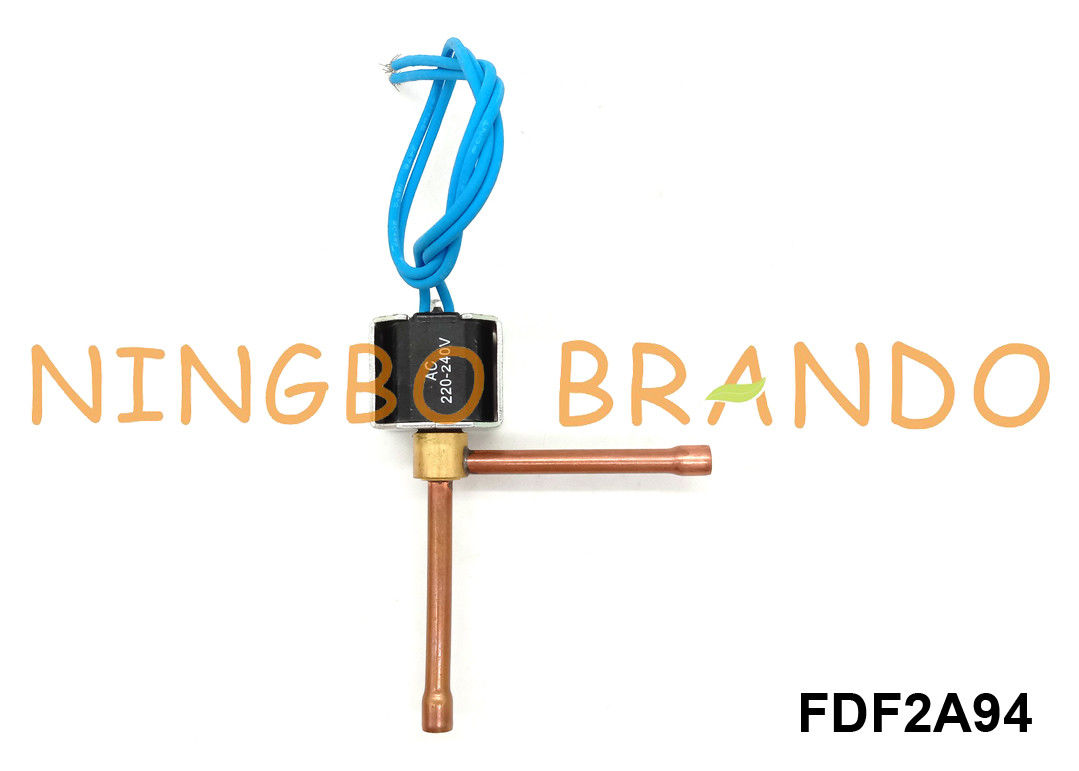

FDF2A FDF2A94 Sanhua Type Refrigeration Solenoid Valve For Air Conditioner
FDF series solenoid valves are direct operated or pilot operated solenoid valves, mainly used in refrigerant control of various devices such as refrigerating and freezing systems, air conditioners and heat pumps.
* Applicable for all common HCFC, HFC refrigerants such as: R22, R134a, R404A, R407C, R410A, R507, R407A/F, R448A/R449A, R452A, R450A/R513A)
* Applicable medium temperature: -30ºC to +120ºC;
* Applicable ambient temperature: -30ºC to +50ºC;
* Relative humidity: below 95%
* Installation position:
1. Liquid, suction and discharge line
2. Coil upwards, coil axis ± 15º tolerance versus vertical axis
3. Flow direction corresponds to the arrow
Technical Data of FDF NC Series Solenoid Valve:
|
Model
|
FDF2A94
|
FDF2.5A06
|
FDF3A08
|
FDF4A10
|
FDF6A58
|
FDF8A21
|
FDF11A05
|
FDF13A07
|
|
Actuation
|
Direct
|
Pilot
|
||||||
|
Kv(m³/h)
|
0.08
|
0.2
|
0.26
|
0.3
|
0.56
|
1.29
|
2.4
|
3.44
|
|
Max. OPD
(MPa)
|
3.4
|
3.4
|
3.4
|
3.4
|
3.4
|
2.8
|
2.8
|
2.8
|
|
Min. OPD (MPa)
|
0
|
0.01
|
0.01
|
0.01
|
0.01
|
0.01
|
0.02
|
0.02
|
|
MOP (MPa)
|
4.5
|
|||||||
|
Normal Position
|
NC
|
|||||||
|
Tube OD (inch)
|
1/4''
|
1/4''
|
5/16''
|
1/4''
|
5/16''
|
3/8''
|
1/2''
|
5/8''
|
|
Tube OD (mm)
|
6.35
|
6.34
|
7.94
|
6.35
|
7.94
|
9.52
|
12.7
|
15.88
|
Main Dimension of FDF NC Series Solenoid Valve:
|
Model
|
Measurement (mm)
|
||
|
L
|
L1
|
L2
|
|
|
FDF 2A 94
|
67
|
32
|
34
|
|
FDF 2.5A 08
|
85
|
38
|
38
|
|
FDF 3A 08
|
81
|
35
|
36
|
|
FDF 4A 10
|
81
|
35
|
38
|
|
FDF 6A 58
|
81
|
35
|
36
|
|
FDF 8A 21
|
114
|
62
|
62
|
|
FDF 11A 16
|
113
|
61
|
61
|
|
FDF 13A 12
|
114
|
62
|
62
|
