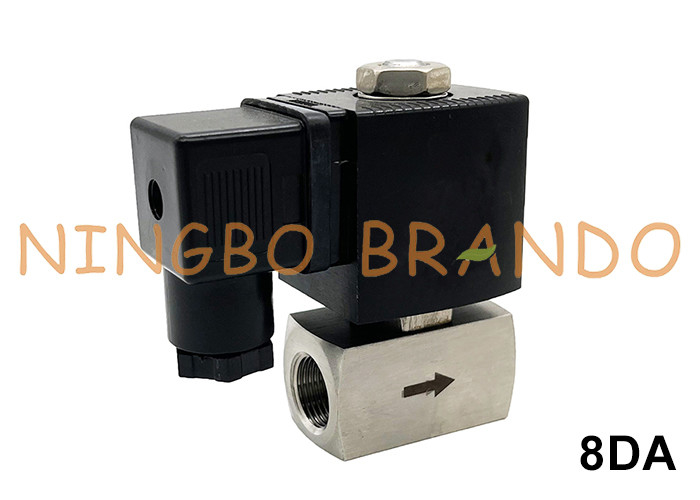

150 bar High Pressure Water Air Stainless Steel Solenoid Valve 12V 24V 110V 220V

150 bar High Pressure Water Air Stainless Steel Solenoid Valve 12V 24V 110V 220V

Product Features:

1. Working Media: Water, Air, Gas, Liquid, etc
2. Working Pressure: 0.1 to 150 bar
3. Media Temperature: -60 to +200℃
4. Port Size: 1/8'', 1/4'', 3/8'', 1/2''
5. Orifice Size: 9mm
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Piston Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:​

Overall Dimension:

Our Production:

FAQ:

Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.

Similar Valves:

Max 200 bar	Max 200 bar	Max 360 bar	Max 700 bar

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
