| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BDI-JF |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $50 per pc |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Working Medium: | Air, Gas, Liquid, Water | Pipe Connection: | Flanged |
|---|---|---|---|
| Port Size: | 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size: | 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
| Operation Mode: | 2 Way, Normally Closed | Operation: | Pilot Piston Operated |
| Body Material: | Stainless Steel | Seal Material: | PTFE () |
| Pressure Range: | 6 To 100 Bar | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | High Pressure Solenoid Valve 220V,High Pressure Solenoid Valve Air,High Pressure Solenoid Valve 100bar |
||

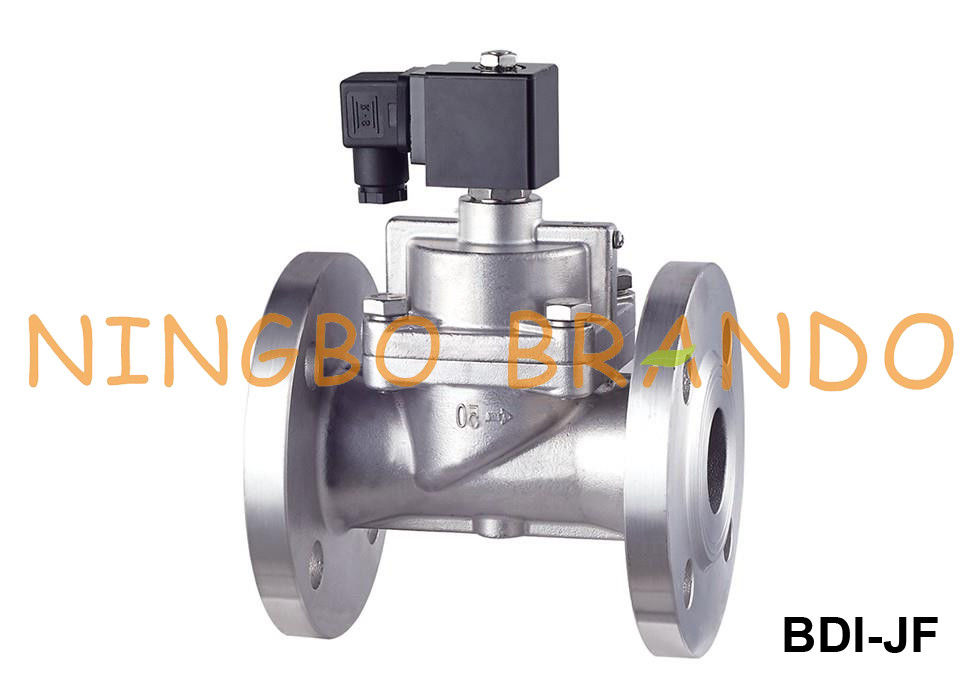

100bar Water Air Stainless Steel High Pressure Solenoid Valve 24V 220V
Product Features of high pressure solenoid valve:
1. Working Medium: Air, Gas, Water, Liquid, etc
2. Medium Temperature Range: 0 to +120℃
3. Working Pressure Range: 6 to 100 Bar
4. Function: 2 Way, Normally Closed
5. Operation: Piston Pilot Operated
6. Body Material: Stainless Steel 304
7. Seal Material: PTFE ()
8. Voltages: 12VDC, 24VAC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of High Pressure Solenoid Valve:
Dimension of High Pressure Solenoid Valve:
Brando Solenoid Valve Factory Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
|
|
|
|
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
|
|
|
|
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
