| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DIN43650B |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 1000000 pcs per month |
| Product Name: | DIN 43650 Connector | DIN 43650 Type: | DIN 43650 Form B |
|---|---|---|---|
| Protection Class: | IP65 | Pole Format: | 2+1GND, 3+1GND |
| Distance: | 11mm | Fixing Screw: | M3x30 |
| Max Conductor Section: | 3x1.5mm² | Current Rating: | 10A |
| Contact Resistance: | ≤5mΩ | Working Voltage: | AC380V, DC300V |
| High Light: | Solenoid Coil Connector With LED,DIN 43650 Form B Connector,MPM DIN 43650 Connectors |
||

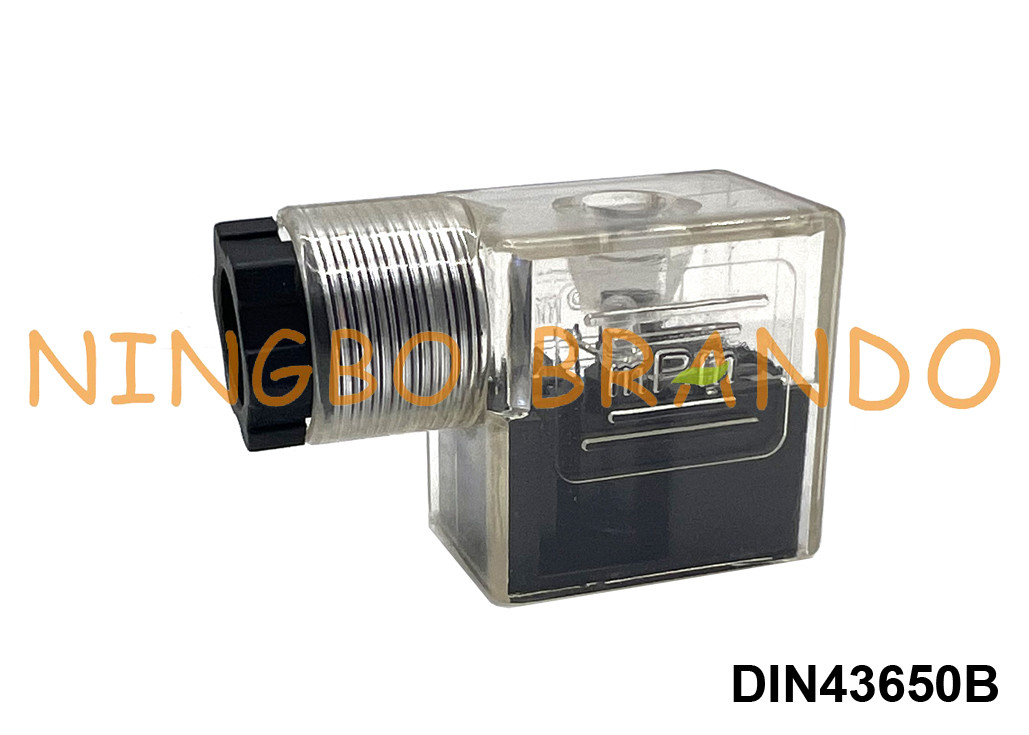

DIN43650B IP65 MPM Solenoid Coil Connector With LED DIN 43650 Form B
The popular DIN 43650 includes a series of electrical connectors designed for use within solenoid valves, particularly those within hydraulic and pneumatic systems. The connector can also be used on pressure sensors and switches, filter, optical, limit and proximity switch applications. When purchasing the DIN 43650 it’s important to ensure you select the correct version for your application. There are three different connector types (A, B and C).
Technical Data of DIN43650B Solenoid Valve Connector:
|
DIN 43650 Type
|
DIN 43650 Form B
|
|
Termination Method
|
Screw
|
|
Contact Spacing
|
11mm
|
|
Number of Poles
|
2 Poles + Ground, 3 Poles + Ground
|
|
Current Rating
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Fixing Screw
|
M3x30mm
|
|
Max Conductor Size
|
3x1.5mm²
|
|
Gasket
|
NBR
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, AC220V, AC110V, AC24V, DC24V, DC12V
|
Dimension of DIN43650B Solenoid Coil Connector:
Product Video of DIN43650B Solenoid Valve Connetor:
More Solenoid Valve Coil Connectors for you to choose:
|
|
|
| DIN43650A | DIN43650B | DIN43650C |
|
|
|
| Waterproof | With Cable | Other |
