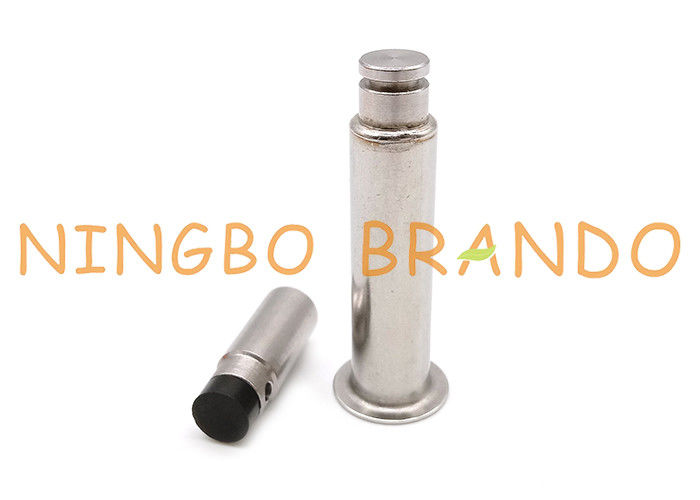

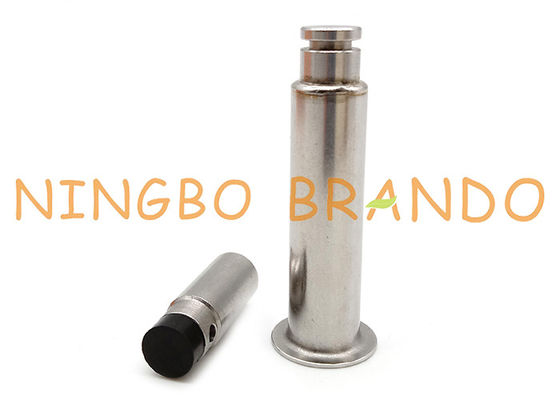

JICI JISI JIFI JIHI Series Pulse Jet Valve Armature Stem Plunger Tube

JICI JISI JIFI JIHI Series Pulse Jet Valve Armature Stem Plunger Tube

This Solenoid armature assembly can be used in JOIL type solenoid pulse valve. Like JISI40 JISI6 JISI80 Pulse Diaphragm Valve. 1 Set Solenoid Stem including Plunger Packing, Plunger, Plunger Spring and Core Tube. The pulse valve is mainly used in the environmental protection dust removal industry. It is controlled by a pilot valve such as electromagnetic or pneumatic. It can open and close the high-pressure gas source to generate a pulse valve in an instant.

A solenoid is a coiled length of metal wire. In most applications, the wire is looped around a metallic core, called an armature. Solenoids feature two cores--the movable armature and a stationary core. As voltage is passed through the solenoid, a magnetic field is produced.

Youtube Video About JORL Solenoid Plunger Assembly:

Dimension of JOIL Type Solenoid Stem:

Specification:

Deconstruction:

Product Features:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
