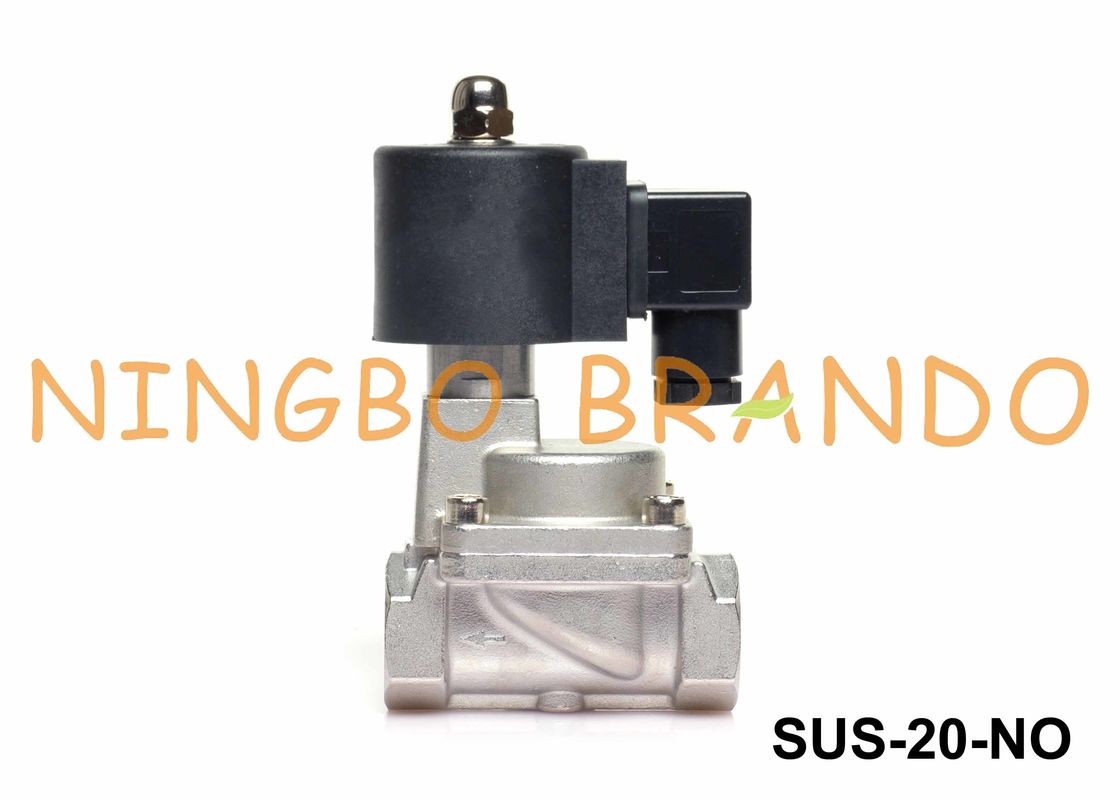

Name: 3/4'' 2 Way NO Stainless Steel 304 Body Solenoid Valve 24VDC 220VAC
Brand: Brando
SKU: SUS-20-NO
Rating: 4.9 (134 reviews)

Home Products Stainless Steel Solenoid Valve

3/4'' 2 Way NO Stainless Steel 304 Body Solenoid Valve 24VDC 220VAC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	SUS-20-NO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability:	300000 sets per month

Contact Now

Detailed Product Description

Port Size:	3/4''	Orifice Size:	20mm
Function:	2 Way, Normally Open	Operation:	Piston Pilot Operated
Body Material:	Stainless Steel	Seal Material:	PTFE
Voltages:	24VDC, 110VAC, 220VAC	Working Pressure Range:	0.05 To 6 MPa
High Light:	2 Way NO Stainless Steel Solenoid Valve , 24VDC Stainless Steel Solenoid Valve , Stainless Steel Solenoid Valve 3/4 Inch

3/4'' 2 Way NO Stainless Steel 304 Body Solenoid Valve 24VDC 220VAC

Working Principle:

For a normally open solenoid valve, the valve is open when de-energized and the media can flow through it. When current is sent to the coil, it creates an electromagnetic field that forces the plunger downwards overcoming the spring force. The seal is then seating in the orifice and closing it, which prevents media from flowing through the valve. A normally open solenoid valve is ideal for applications that require the valve to be open for long periods of time as this is then more energy efficient.

Main Dimension of SUS series Stainless Steel Solenoid Valve:

3/4'' 2 Way NO Stainless Steel 304 Body Solenoid Valve 24VDC 220VAC 0

Model	L	H	A	B	φC	D	K
SUS-15	69	121	14	48.5	48	83.5	1/2''
SUS-15-NO		128
SUS-20	79	133	18	55.5			3/4''
SUS-20-NO		140
SUS-25	96	142	21	70			1''
SUS-25-NO		149
SUS-32	109	152	27	70			1 1/4''
SUS-32-NO		159
SUS-40	128	167	31	95			1 1/2''
SUS-40-NO		174
SUS-50	150	183	38	100			2''
SUS-50-NO		190

Technical Data of SUS Series Stainless Steel Solenoid Valve:

Model	SUS-15	SUS-20	SUS-25	SUS-32	SUS-40	SUS-50
Model	SUS-15-NO	SUS-20-NO	SUS-25-NO	SIUS-32-NO	SUS-40-NO	SUS-50-NO
Port Size	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Orifice Size	15mm	20mm	25mm	32mm	40mm	50mm
Cv Value	5	6	13	20	28	39.5
Function	2 way, normally closed / normally open
Operation	Piston pilot operated
Body Material	Stainless steel 304
Seal Material	PTFE, FKM, EPDM
Working Temperature	PTFE: -20 to +180℃, FKM: -10 to +150℃, EPDM: -5 to +120℃
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Protection Class	IP65, IP67, Ex-proof
Insulation Class	F, H
Installation	Horizontal or Slant
