1090/6 1090/6A6 1090/6A7 3/4'' SAE Flare Air Conditioner Valve

1090/6 1090/6A6 1090/6A7 3/4'' SAE Flare Air Conditioner Valve

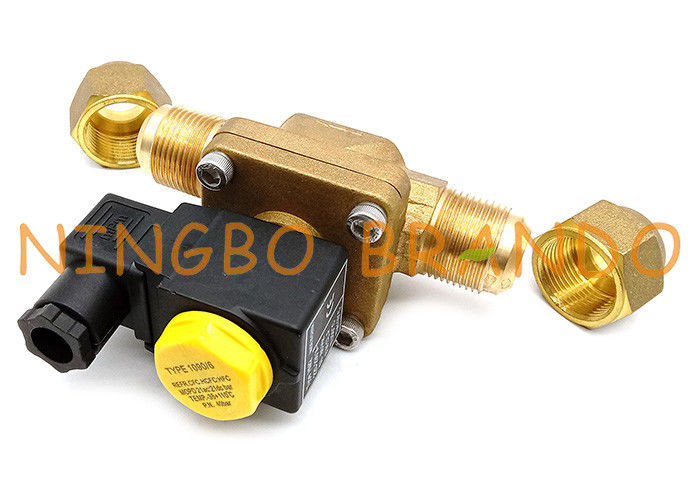

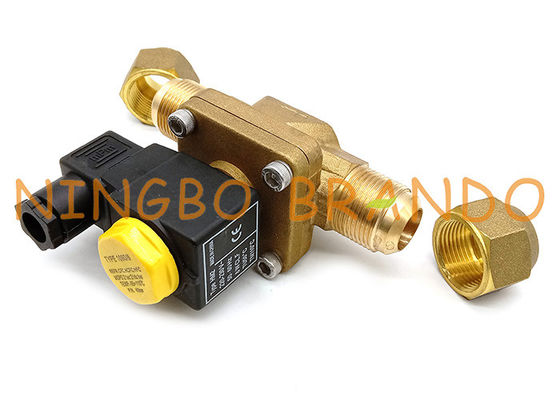

The shown is castel type 1090/6 solenoid valve, 3/4'' SAE flare port size, 2 way normally closed, 220/230V AC (50/60Hz), 240V AC voltages (other voltages can be customized), ordering code: 1090/6, 1090/6S, 1090/6A6, 1090/6A7.

A solenoid valve is an electronically operated device. The valve is commonly used to replace a manual valve or where remote control is desirable. A solenoid is operated by opening and closing an orifice in a valve body that permits or prevents flow through the valve. The orifice is opened or closed through the use of a plunger that is raised or lowered within a sleeve tube by energizing the coil. The bottom of the plunger contains a compatible sealing material, which closes off the orifice in the body, stopping flow through the valve.

Electromagnetic step-by-step direct piston operation structure
①The recoil type special structure which integrates the direct-acting valve opening and the first different valve opening in one;
②The main valve can be opened without pressure, the low-pressure differential flow is large, and the scope of application is wide;
③Using PTFE seal, good temperature resistance;
④Reliable operation with zero pressure difference;
⑤Type: normally closed.

Dimension & Data of Castel Type Solenoid Valve:

Product video of 1090/6 Castel Type Solenoid Valve:
