Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | 1079/7 |
Minimum Order Quantity: | 50 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Individual Boxes, Carton, Pallet |
Delivery Time: | 4-7 days |
Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
Supply Ability: | 100000 pcs per month |
Product Name: | 1079/7 Castel Type Solenoid Valve | System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line |
---|---|---|---|
Application: | Chiller, Freezer, Air Conditioner, Cooler.... | Ordering Number: | 1079/7S, 1079/7A6, 1079/7A7 |
Port Size: | 7/8 Inch | Connection Type: | Solder (ODS) |
Function: | 2 Way Normally Closed | Valve Operation: | Pilot Diaphragm Operated |
Voltages: | 220/230V AC (50/60Hz), 240V AC | Coil Option: | HM2, HM3 |
High Light: | 1079/7 Refrigeration Solenoid Valve,7/8'' Solder Refrigeration Solenoid Valve,Castel Type 1079/7 |
1079/7 1079/7A6 1079/7A7 7/8'' Solder Refrigeration Solenoid Valve
1079/7S: 7/8'' Inch ODS Connection Diaphragm Pilot Operated NC Refrigeration Solenoid Valve ODS Connection Without Coil.
1079/7A6: 7/8'' Inch ODS Connection Diaphragm Pilot Operated NC Refrigeration Solenoid Valve ODS Connection With 220/230 VAC(A6) Coil.
1079/7A7: 7/8'' Inch ODS Connection Diaphragm Pilot Operated NC Refrigeration Solenoid Valve ODS Connection With 240 VAC(A7) Coil.
HF2 HF3 HM2 HM3 HM4 CM2 Coil can be mounted on the valve.

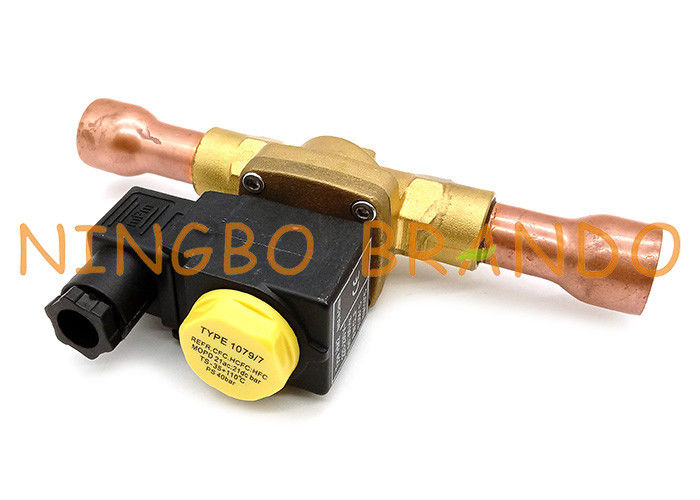

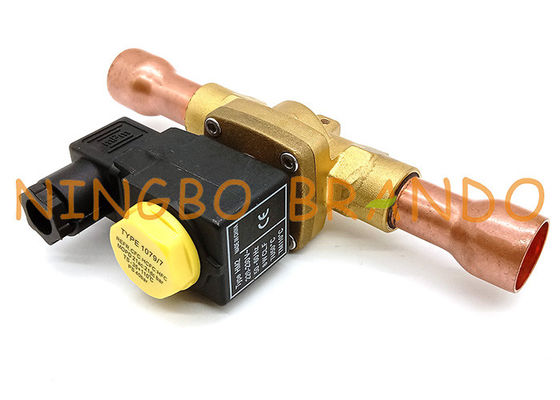

The shown is 1079/7 solenoid valve, 7/8'' ODS solder port size, 2 way normally closed, 220/230VAC (50/60Hz), 240VAC voltages (other voltages can be customized), ordering code: 1079/7, 1079/7S, 1079/7A6, 1079/7A7.
1. Refrigeration Solenoid Valve:
* Danfoss Type: EVR 3, EVR 6, EVR 10, EVR 15, EVR 20, EVR 22, EVR 25, EVR 32, EVR 25, EVRA 25, EVRA 32, EVRA 40;
* Castel Type: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.
2. Refrigerator Solenoid Valve: FDF, SDF ......
3. Expansion Valve: Thermostatic / Thermal Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......
Dimension & Data of Castel Type Solenoid Valve:
Model
|
Connection
|
Dimension
|
Coil Type
|
|||
SAE (Flare), ODF (Solder)
|
H1
|
H2
|
L1
|
Q
|
HM2
HM3
|
|
1020/2
|
1/4'' SAE
|
75
|
62.5
|
58
|
-
|
|
1020/3
|
3/8'' SAE
|
65
|
||||
1028/2
|
1/4'' ODF
|
32.5
|
125
|
|||
1028/3
|
3/8'' ODF
|
62.5
|
125
|
|||
1064/3
|
3/8'' SAE
|
82
|
69.5
|
68
|
||
1064/4
|
1/2'' SAE
|
72
|
||||
1068/3
|
3/8'' ODF
|
111
|
||||
1068/4
|
1/2'' ODF
|
127
|
||||
1070/4
|
1/2'' ODF
|
91
|
75.0
|
100
|
45
|
|
1070/5
|
5/8'' ODF
|
106
|
||||
1078/4
|
1/2'' ODF
|
127
|
||||
1078/5
|
5/8'' ODF
|
173
|
||||
1078/9
|
1 1/8'' ODF
|
115
|
96.0
|
250
|
80
|
|
1078/11
|
1 3/8'' ODF
|
172
|
138.0
|
278
|
68
|
|
1090/5
|
5/8'' SAE
|
106
|
78.0
|
120
|
57
|
|
1090/6
|
3/4'' SAE
|
106
|
78.0
|
124
|
57
|
|
1079/7
|
7/8'' ODF
|
91
|
75.0
|
190
|
45
|
|
1079/11
|
1 3/8'' ODF
|
115
|
96.0
|
292
|
80
|
|
1079/13
|
1 5/8'' ODF
|
172
|
138.0
|
278
|
68
|
|
1098/7
|
7/8'' ODF
|
106
|
78.0
|
180
|
57
|
|
1099/9
|
1 1/8'' ODF
|
106
|
78.0
|
216
|
57
|
|
1099/11
|
1 3/8'' ODF
|
157
|
127.0
|
291
|
68
|
Product video of 1079/7 Castel Type Solenoid Valve:
The refrigeration solenoid valve is an automation basic component used to control the direction of the fluid, which belongs to the actuator; it is usually used for mechanical control and industrial valves to control the direction of the medium, so as to achieve the control of the valve switch.
There is a closed cavity in the solenoid valve with through holes at different positions. Each hole leads to a different tubing. In the middle of the cavity is the valve. On both sides are two electromagnets. Which side of the magnet coil will be attracted when the valve body is energized. To which way, by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different oil discharge pipes, and then the oil pressure will push the oil cylinder The piston, the piston drives the piston rod, and the piston rod drives the mechanical device to move. In this way, the mechanical movement is controlled by controlling the current of the electromagnet. Only the solenoid valve is completed by using electromagnetic force to act on the iron core sealed in the magnetic isolation sleeve of the electric control valve. There is no dynamic seal, so the external leakage is easy to be blocked.
The torque control of the electric valve is not easy, and it is easy to produce internal leakage, or even pull off the head of the valve stem; the structure of the solenoid valve is easy to control internal leakage until it drops to zero.
