| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 1068/3 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Ordering Number: | 1068/3, 1068/3S, 1068/3A6, 1068/3A7 |
|---|---|---|---|
| Port Size: | 3/8'' | Connection Type: | ODS (Solder) |
| Valve Operation: | Diaphragm Pilot Operated | Voltages: | 220/230V AC (50/60Hz), 240V AC |
| Coil Option: | HM2, HM3 | Function: | 2 Way Normally Closed |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Application: | Chiller, Freezer, Air Conditioner, Cooler.... |
| Highlight: | 1068/3 Refrigeration Solenoid Valve,Solder Refrigeration Solenoid Valve,Castel Type 1068/3 |
||

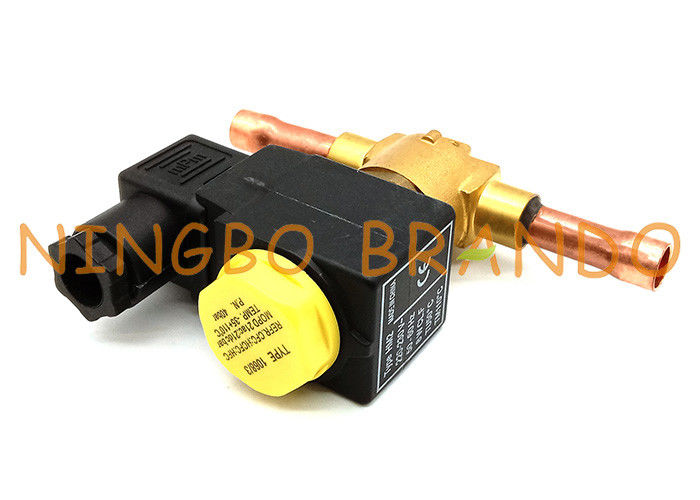

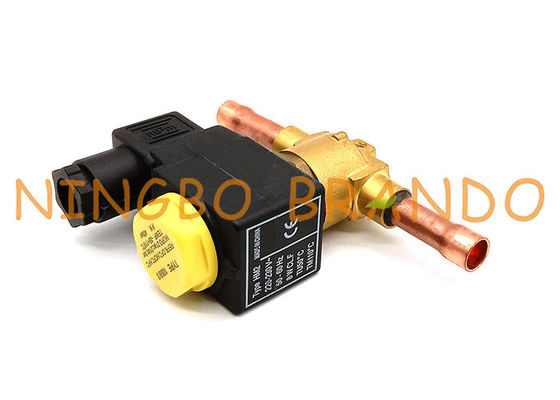

1068/3 1068/3A6 1068/3A7 3/8'' Inch Solder Refrigeration Solenoid Valve
The shown is castel type 1068/3 solenoid valve, 3/8'' ODS solder port size, 2 way normally closed, 220/230V AC (50/60Hz), 240V AC voltages (other voltages can be customized), ordering code: 1068/3, 1068/3S, 1068/3A6, 1068/3A7.
BRANDO offers a wide variety of solenoid valve sizes and styles which may be employed in refrigeration and air conditioning systems to electrically control refrigerant flow. Solenoid valves are electrically operated ''stop-valves''. These are either fully open or fully closed. Remember these do not modulate flow.
Working principle
The refrigeration solenoid valve is an automation basic component used to control the direction of the fluid, which belongs to the actuator; it is usually used for mechanical control and industrial valves to control the direction of the medium, so as to achieve the control of the valve switch.
There is a closed cavity in the solenoid valve with through holes at different positions. Each hole leads to a different tubing. In the middle of the cavity is the valve. On both sides are two electromagnets. Which side of the magnet coil will be attracted when the valve body is energized. To which way, by controlling the movement of the valve body to block or leak different oil discharge holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different oil discharge pipes, and then the oil pressure will push the oil cylinder The piston, the piston drives the piston rod, and the piston rod drives the mechanical device to move. In this way, the mechanical movement is controlled by controlling the current of the electromagnet.
Dimension & Data of Castel Type Solenoid Valve:
|
Model
|
Connection
|
Dimension
|
Coil Type
|
|||
|
SAE (Flare), ODF (Solder)
|
H1
|
H2
|
L1
|
Q
|
HM2
HM3
|
|
|
1020/2
|
1/4'' SAE
|
75
|
62.5
|
58
|
-
|
|
|
1020/3
|
3/8'' SAE
|
65
|
||||
|
1028/2
|
1/4'' ODF
|
32.5
|
125
|
|||
|
1028/3
|
3/8'' ODF
|
62.5
|
125
|
|||
|
1064/3
|
3/8'' SAE
|
82
|
69.5
|
68
|
||
|
1064/4
|
1/2'' SAE
|
72
|
||||
|
1068/3
|
3/8'' ODF
|
111
|
||||
|
1068/4
|
1/2'' ODF
|
127
|
||||
|
1070/4
|
1/2'' ODF
|
91
|
75.0
|
100
|
45
|
|
|
1070/5
|
5/8'' ODF
|
106
|
||||
|
1078/4
|
1/2'' ODF
|
127
|
||||
|
1078/5
|
5/8'' ODF
|
173
|
||||
|
1078/9
|
1 1/8'' ODF
|
115
|
96.0
|
250
|
80
|
|
|
1078/11
|
1 3/8'' ODF
|
172
|
138.0
|
278
|
68
|
|
|
1090/5
|
5/8'' SAE
|
106
|
78.0
|
120
|
57
|
|
|
1090/6
|
3/4'' SAE
|
106
|
78.0
|
124
|
57
|
|
|
1079/7
|
7/8'' ODF
|
91
|
75.0
|
190
|
45
|
|
|
1079/11
|
1 3/8'' ODF
|
115
|
96.0
|
292
|
80
|
|
|
1079/13
|
1 5/8'' ODF
|
172
|
138.0
|
278
|
68
|
|
|
1098/7
|
7/8'' ODF
|
106
|
78.0
|
180
|
57
|
|
|
1099/9
|
1 1/8'' ODF
|
106
|
78.0
|
216
|
57
|
|
|
1099/11
|
1 3/8'' ODF
|
157
|
127.0
|
291
|
68
|
|
Product video of 1068/3 Castel Type Solenoid Valve:
