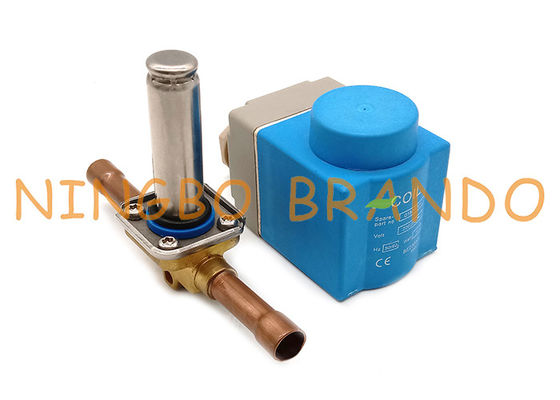

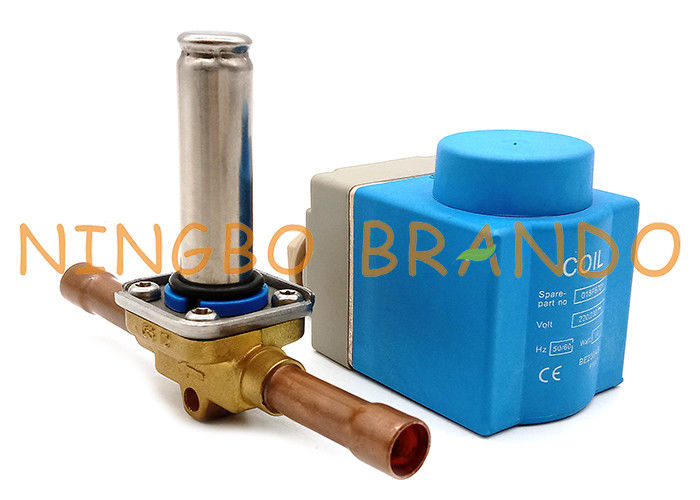

032F1157 032F1204 032F5084 EVR 3 3/8'' Inch Refrigeration Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	EVR 3-038S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Individual Boxes, Carton, Pallet
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Type:	Direct Acting	Material:	Brass
Pressure:	Ordinary Pressure	Valve Structure:	Direct-Acting Piston Structure
Power Supply:	DC Solenoid Valve	Usage:	Temperature Control
Standard:	GB	Cooper Pipe Size:	1/4'' Through 2-1/8''
Solenoid Coils:	DC/AC	Application:	Refrigeration Units,Air Conditioning Or Refrigerator
Highlight:	032F1157 Refrigeration Solenoid Valve , 032F1204 Refrigeration Solenoid Valve , Danfoss Type EVR 3

032F1157 032F1204 032F5084 EVR 3 3/8'' Inch Refrigeration Solenoid Valve

EVR Solenoid Valve Product Introduction:

Our plunger solenoid valve are direct or servo operated solenoid valve for liquid, suction, and hot gas lines with fluorinated refrigerants. EVR plunger solenoid valve are supplied complete or as seprate components, i.e. valve body, coil and flanges, if required, can be ordered seprately.

EVR solenoid valve features:

1, complete range of solenoid valve for refrigeration, freezing and conditioning plant

2, wide choice of coil for AC and DC

3, suitable for all fluorinated refrigerants

4, Extended ends for soldering make installation easy, it is not necessary to dismantle the valve when soldering in.

5, EVR valve is also available with flange connection type

Dimension:

032F1157 032F1204 032F5084 EVR 3 3/8'' Inch Refrigeration Solenoid Valve 0

Model		Connection		H1	H2	L	L2
SAE (Thread)	ODF (Solder)	Inch	mm	mm	mm	mm	mm
EVR3-014	EVR3-014S	1/4''	6	14	71	102	7
EVR3-038	EVR3-038S	3/8''	10	14	73	117	10
EVR6-038	EVR6-038S	3/8''	10	14	79	111	10
EVR6-012	EVR6-012S	1/2''	12.8	14	79	127	10
EVR10-012	EVR10-012S	1/2''	12.8	16	79	127	10
EVR10-058	EVR10-058S	5/8''	16	16	79	160	12
	EVR15-058S	5/8''	16	19	86	176	12
	EVR15-078S	7/8''	22	19	86	176	17
	EVR20-078S	7/8''	22	20	90	191	17
	EVR20-118S	1 1/8''	28.8	20	90	214	22
	EVR22-0138S	1 3/8''	35	20	90	281	25
	EVR25-118S	1 1/8''	28.8	38	138	256	22
	EVR25-138S	1 3/8''	35	38	138	281	25
	EVR32-138S	1 3/8''	35	47	111	281	25
	EVR32-158S	1 5/8''	42	47	111	281	29
	EVR40-158S	1 5/8''	42	47	111	281	29
	EVR40-218S	2 1/8''	54	47	111	281	34

Type	Current Type	Connection Size		Max. working pressure		Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
Type	Current Type	[mm]	[in.]	[bar]	[psi]	Kv valve [m3/h]	Cv valve [gal/min]	Coder No.
EVR2	a.c.	-	1/4	45.2	655	0.16	0.19	032F1201
EVR2	a.c.	6	-	45.2	655	0.16	0.19	032F1202
EVR3	a.c./d.c.	-	1/4	45.2	655	0.27	0.32	032F1206
	a.c./d.c.	-	3/8	45.2	655	0.27	0.32	032F1204
	a.c./d.c.	6	-	45.2	655	0.27	0.32	032F1207
	a.c./d.c.	10	-	45.2	655	0.27	0.32	032F1208
EVR6	a.c./d.c.	-	1/2	45.2	655	0.80	0.92	032F1209
	a.c./d.c.	-	3/8	45.2	655	0.80	0.92	032F1212
	a.c./d.c.	10	-	45.2	655	0.80	0.92	032F1213
	a.c./d.c.	12	-	45.2	655	0.80	0.92	032F1236
EVR10	a.c./d.c.	-	1/2	35	500	1.9	2.2	032F1217
	a.c./d.c.	12	-	35	500	1.9	2.2	032F1218
	a.c./d.c.	16	5/8	35	500	1.9	2.2	032F1214
EVR15	a.c./d.c.	22	7/8	32	460	2.6	3.0	032F1225
	a.c./d.c.	16	-	32	460	2.6	3.0	032F1227
	a.c./d.c.	16	5/8	32	460	2.6	3.0	032F1228
EVR20	a.c.	22	7/8	32	460	5.0	5.8	032F1240
	a.c.	-	7/8	32	460	5.0	5.8	032F1254
	a.c.	-	1-1/8	32	460	5.0	5.8	032F1244
	a.c.	28	-	32	460	5.0	5.8	032F1245
	d.c.	22	7/8	32	460	5.0	5.8	032F1264
	d.c.	-	7/8	32	460	5.0	5.8	032F1274
ECR22	a.c.	35	1-3/8	32	460	6.0	6.9	032F3267
EVR25	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2200
	a.c./d.c.	-	1-1/8	32	460	10.0	11.6	032F2201
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2205
	a.c./d.c.	28	-	32	460	10.0	11.6	032F2206
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2207
	a.c./d.c.	-	1-3/8	32	460	10.0	11.6	032F2208
EVR32	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1103
	a.c./d.c.	-	1-5/8	32	460	16.0	18.5	042H1104
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1105
	a.c./d.c.	35	-	32	460	16.0	18.5	042H1106
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1107
	a.c./d.c.	42	-	32	460	16.0	18.5	042H1108
EVR 40	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1109
	a.c./d.c.	-	1-5/8	32	460	25.0	28.9	042H1110
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1111
	a.c./d.c.	-	2-1/8	32	460	25.0	28.9	042H1112
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1113
	a.c./d.c.	42	-	32	460	25.0	28.9	042H1114

The Danfoss Type EVR range of solenoid valves has a proven track record with more than 30 years of presence in a wide scope of air-conditioning and refrigeration applications such as walk-in cold rooms, display freezers and refrigerators, chillers, rooftop units, or close controls. Ten key features have been applied to enhance design robustness in more applications, increase functionality, and make service easier.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
