| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR6-038S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Port Size: | 3/8 Inch | Coil: | No |
|---|---|---|---|
| Function: | Normally Closed | Valve Operation: | Sevro-Diaphragm |
| Direction: | Straightway | Inlet &Outlet Connection: | ODF Solder |
| Application: | Refrigeration System, Air Conditioner | Body Material: | Brass |
| Highlight: | 032L1212 Refrigeration Solenoid Valve,032L2082 Refrigeration Solenoid Valve,Danfoss EVR 6 |
||

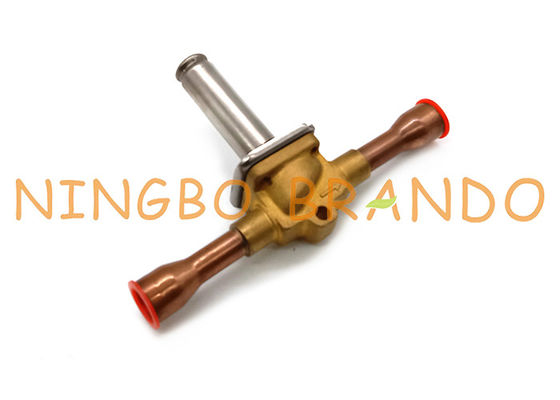

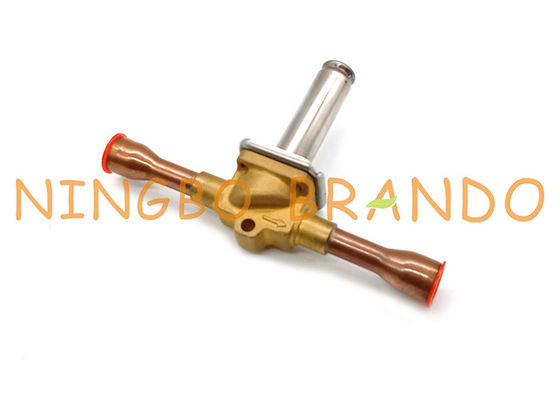

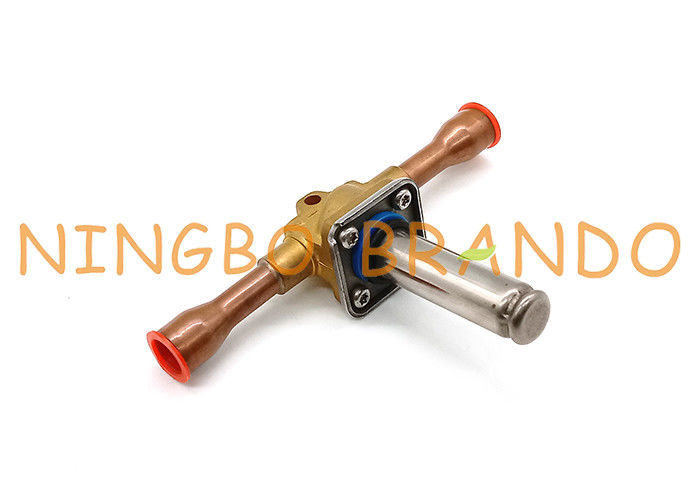

032L1212 032L2082 032L4083 EVR 6 3/8" Refrigeration Solenoid Valve
3/8'' ODF Solder refrigeration solenoid valve is one kind of s type EVR6 series. Refrigeration solenoid valve is an automatic sub-element used to control thedirection of the fluid, which belongs to the actutor.It is usually used in mechanical control and industrial valves to control the direction of the medium, so as to achieve the control of the valve swith.There is a closed cavity in the solenoid valve, and there are through holes in different positions. Each hole leads to a different pipe.In the middle of the cavity is the valve. On both sides are two electromagnets. Where, by controlling the movement of the valve body to block or leak the differential oil discharge hole, and the oil inlet hole is normally open, the hydraulic oil will enter the differential oil discharge pipe, and then use the pressure of the oil to propel the cylinder The piston drives the piston rod, and the piston rod drives the mechanical device.
Refrigeration system solenoid valve is an important component in the refrigeration building. It has been widely used in HVAC and dry buildings, and refrigeration system solenoid valves are also used in the air treatment industry.
Dimension:
Data sheet of EVR Series:
|
Type
|
Connection size (inch)
|
Connection size
(mm)
|
Max. working Pressure
(bar)
|
Kv value
(m3/h)
|
Code NO.
|
|
EVR 2
|
1/4
|
-
|
45.2
|
0.15
|
032F1201
|
|
-
|
6
|
45.2
|
0.15
|
032F1202
|
|
|
EVR 3
|
1/4
|
-
|
45.2
|
0.26
|
032F1206
|
|
3/8
|
-
|
45.2
|
0.26
|
032F1204
|
|
|
-
|
6
|
45.2
|
0.26
|
032F1207
|
|
|
-
|
10
|
45.2
|
0.26
|
032F1208
|
|
|
EVR 6
|
1/2
|
-
|
45.2
|
0.80
|
032L1209
|
|
3/8
|
-
|
45.2
|
0.80
|
032L1212
|
|
|
-
|
10
|
45.2
|
0.80
|
032L1213
|
|
|
-
|
12
|
45.2
|
0.80
|
032L1236
|
|
|
EVR 10
|
1/2
|
-
|
35
|
1.9
|
032L1217
|
|
-
|
12
|
35
|
1.9
|
032L1218
|
|
|
5/8
|
16
|
35
|
1.9
|
032L1214
|
|
|
EVR 15
|
7/8
|
22
|
32
|
2.6
|
032L1225
|
|
5/8
|
16
|
32
|
2.6
|
032L1228
|
|
|
EVR 20
|
7/8
|
22
|
32
|
5.0
|
032L1240
|
|
1 1/8
|
-
|
32
|
5.0
|
032L1244
|
|
|
-
|
28
|
32
|
5.0
|
032L1245
|
|
|
7/8
|
22
|
32
|
5.0
|
032L1264
|
|
|
EVR 22
|
1 3/8
|
35
|
32
|
6.0
|
032L3267
|
|
EVR 25
|
1 1/8
|
-
|
32
|
10.0
|
032L2201
|
|
-
|
28
|
32
|
10.0
|
032L2206
|
|
|
1 3/8
|
-
|
32
|
10.0
|
032L2207
|
|
|
1 3/8
|
-
|
32
|
10.0
|
032L2208
|
|
|
EVR 32
|
1 5/8
|
-
|
32
|
10.0
|
042L1104
|
|
-
|
35
|
32
|
16.0
|
042L1105
|
|
|
-
|
35
|
32
|
16.0
|
042L1106
|
|
|
-
|
42
|
32
|
32
|
042L1108
|
|
|
EVR 40
|
1 5/8
|
-
|
32
|
32
|
042L1110
|
|
2 1/8
|
-
|
32
|
32
|
042L1112
|
|
|
|
42
|
32
|
32
|
042L1114
|
Feature:
Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
Supplied in versions normally closed (NC) and normally open (NO) with de-energized coil
Wide choice of coils for a.c. and d.c.
Suitable for all fluorinated refrigerants,including flammable refrigerants
Designed for media temperatures up to 105 °C
MOPD up to 25 bar with 12 W coil
Flare connections up to 5/8 in.
Solder connections up to 2 1/8 in.
Extended ends on solder versions make the installation easy. It is not necessary to dismantle the valve when soldering in.
Available in flare, solder and flange conection versions
