| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR 25 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Ordering Number: | 032F2201, 032L2201 |
|---|---|---|---|
| Port Size: | 1 1/8'' (28mm) | Connection Type: | Solder (ODF) |
| Function: | 2 Way, Normally Closed | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, 230VAC |
| Body Material: | Brass | Seal Material: | PTFE |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Application: | Chiller, Freezer, Air Conditioning, Cooler, Etc |
| High Light: | 1 1/8'' Refrigeration Solenoid Valve,Refrigeration Solenoid Valve 24V DC,Solenoid Refrigeration Valves |
||

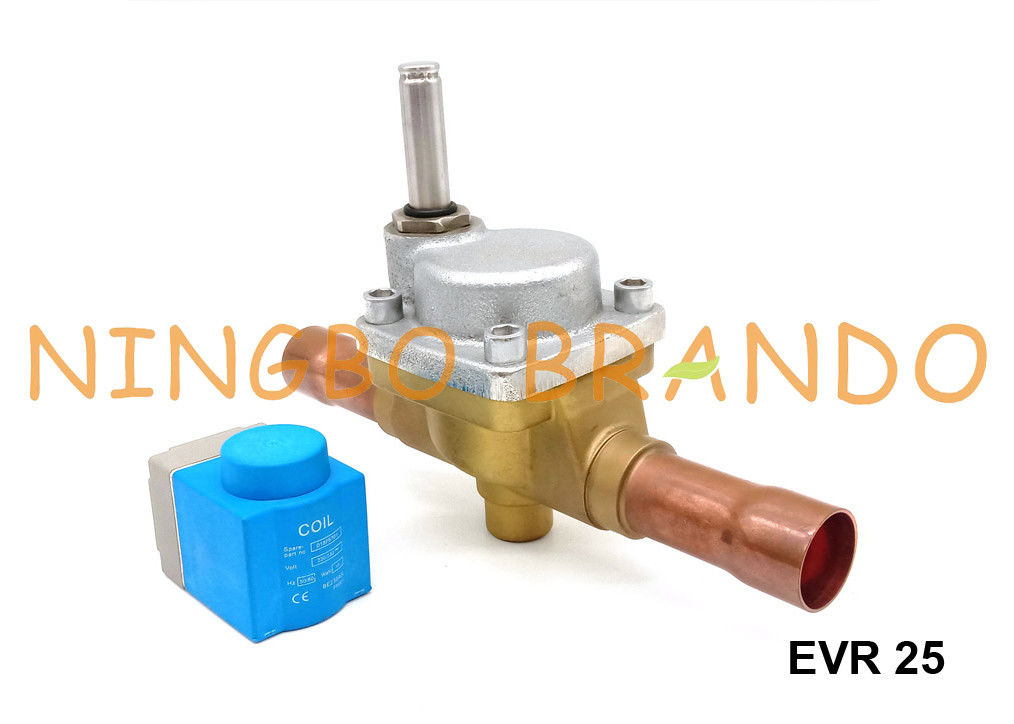

Danfoss Type EVR 25 NC Refrigeration Solenoid Valve 1 1/8'' 24V DC 220V AC
The shown is danfoss type EVR 25 solenoid valve, 1 1/8'' (28mm) ODF solder port size, 2 way normally closed, 12V DC, 24V DC, 24V AC, 110V AC, 220V AC voltages (other voltages can be customized), ordering code: 032F2201, 032L2201. EVR solenoid valves are suitable for HFC, CFC, and HCFC. The temperature range for the medium is -40°C to +105°C The valves listed below are the ''normally closed'' type. ''Normally open'' valves are also available to order. Where there is a choice of body size with the same connections please check the duty requirements to ensure correct selection. Solenoid Valves are supplied WITHOUT Coils. Please order coils separately.
Main Dimension of EVR Series Solenoid Valve:
|
Model
|
Port Size
|
H1
|
H2
|
L
|
L2
|
||
|
SAE (Flare)
|
ODF (Solder)
|
Inch
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
EVR 3
|
EVR 3
|
1/4''
|
6
|
14
|
71
|
102
|
7
|
|
EVR 3
|
EVR 3
|
3/8''
|
10
|
14
|
73
|
117
|
10
|
|
EVR 6
|
EVR 6
|
3/8''
|
10
|
14
|
79
|
111
|
10
|
|
EVR 6
|
EVR 6
|
1/2''
|
12.8
|
14
|
79
|
127
|
10
|
|
EVR 10
|
EVR 10
|
1/2''
|
12.8
|
16
|
79
|
127
|
10
|
|
EVR 10
|
EVR 10
|
5/8''
|
16
|
16
|
79
|
160
|
12
|
|
|
EVR 15
|
5/8''
|
16
|
19
|
86
|
176
|
12
|
|
|
EVR15
|
7/8''
|
22
|
19
|
86
|
176
|
17
|
|
|
EVR 20
|
7/8''
|
22
|
20
|
90
|
191
|
17
|
|
|
EVR 20
|
1 1/8''
|
28.8
|
20
|
90
|
214
|
22
|
|
|
EVR 22
|
1 3/8''
|
35
|
20
|
90
|
281
|
25
|
|
|
EVR 25
|
1 1/8''
|
28.8
|
38
|
138
|
256
|
22
|
|
|
EVR25
|
1 3/8''
|
35
|
38
|
138
|
281
|
25
|
|
|
EVR 32
|
1 3/8''
|
35
|
47
|
111
|
281
|
25
|
|
|
EVR 32
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR 40
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR 40
|
2 1/8''
|
54
|
47
|
111
|
281
|
34
|
Product Video of EVR 25 1 1/8'' Danfoss Type Solenoid Valve:
Ordering Code of EVR Solder Connections, Normally Closed (NC) - Separate Valve Bodies:
Ordering Code of EVR Flare Connections, Normally Closed (NC) - Separate Valve Bodies:
