| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR 15 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Refrigeration Solenoid Valve | Ordering Number: | 032F1225, 032L1225 |
|---|---|---|---|
| Port Size: | 7/8'' (22mm) | Connection Type: | Solder (ODF) |
| Function: | 2 Way, Normally Closed | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, 230VAC |
| Body Material: | Brass | Seal Material: | PTFE |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Application: | Chiller, Freezer, Air Conditioning, Cooler, Etc |
| High Light: | Refrigeration Solenoid Valve 7/8'',Danfoss EVR 15 Solenoid Valve,Danfoss 032F1225 |
||
Danfoss Type EVR 10 032F1214 Refrigeration Solenoid Valve 5/8''

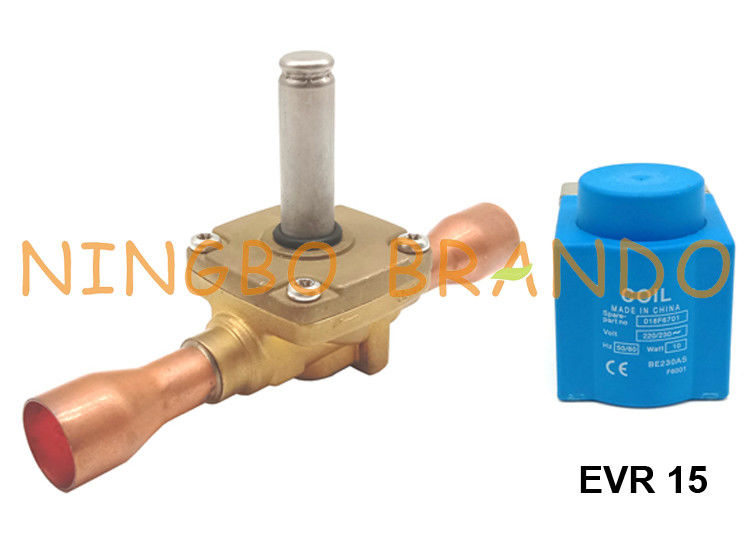

The shown is danfoss type EVR 15 solenoid valve, 7/8'' (22mm) ODF solder port size, 2 way normally closed, 12V DC, 24V DC, 24V AC, 110V AC, 220V AC voltages (other voltages can be customized), ordering code: 032F1225, 032L1225.
One of the most common uses to control the refrigerant flow to the evaporator. Solenoid valve is installed in the liquid refrigerant line that feeds the evaporator, just upstream from the TXV. In this position, it stops the flow of the liquid refrigerant into the evaporator when the cooling requirements are met. This control is especially useful for reducing the output of the cooling system, which feeds more than one evaporator or evaporator where there are multiple partitions, each with its own metering device.
Main Dimension of EVR Series Solenoid Valve:
|
Model
|
Port Size
|
H1
|
H2
|
L
|
L2
|
||
|
SAE (Flare)
|
ODF (Solder)
|
Inch
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
EVR 3
|
EVR 3
|
1/4''
|
6
|
14
|
71
|
102
|
7
|
|
EVR 3
|
EVR 3
|
3/8''
|
10
|
14
|
73
|
117
|
10
|
|
EVR 6
|
EVR 6
|
3/8''
|
10
|
14
|
79
|
111
|
10
|
|
EVR 6
|
EVR 6
|
1/2''
|
12.8
|
14
|
79
|
127
|
10
|
|
EVR 10
|
EVR 10
|
1/2''
|
12.8
|
16
|
79
|
127
|
10
|
|
EVR 10
|
EVR 10
|
5/8''
|
16
|
16
|
79
|
160
|
12
|
|
|
EVR 15
|
5/8''
|
16
|
19
|
86
|
176
|
12
|
|
|
EVR15
|
7/8''
|
22
|
19
|
86
|
176
|
17
|
|
|
EVR 20
|
7/8''
|
22
|
20
|
90
|
191
|
17
|
|
|
EVR 20
|
1 1/8''
|
28.8
|
20
|
90
|
214
|
22
|
|
|
EVR 22
|
1 3/8''
|
35
|
20
|
90
|
281
|
25
|
|
|
EVR 25
|
1 1/8''
|
28.8
|
38
|
138
|
256
|
22
|
|
|
EVR25
|
1 3/8''
|
35
|
38
|
138
|
281
|
25
|
|
|
EVR 32
|
1 3/8''
|
35
|
47
|
111
|
281
|
25
|
|
|
EVR 32
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR 40
|
1 5/8''
|
42
|
47
|
111
|
281
|
29
|
|
|
EVR 40
|
2 1/8''
|
54
|
47
|
111
|
281
|
34
|
Product Video of EVR 15 7/8'' Danfoss Type Solenoid Valve:
Ordering Code of EVR Solder Connections, Normally Closed (NC) - Separate Valve Bodies:
Ordering Code of EVR Flare Connections, Normally Closed (NC) - Separate Valve Bodies:
EVR Solenoid Valve Parts For you to choose:
Solenoid Valve Armature Assembly Solenoid Valve Coil
More Refrigeration Valve For you to choose:
Danfoss Type Solenoid Valve Ammonia Solenoid Valve Castel Type Solenoid Valve
Expansion Valve Refrigerator Solenoid Valve
