M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Stem

M18 Seat NBR Seals LPG CNG Conversion Kit Solenoid Valve Stem

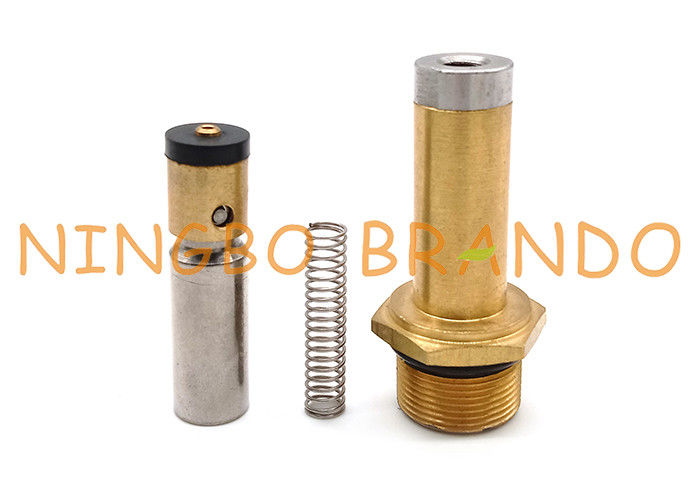

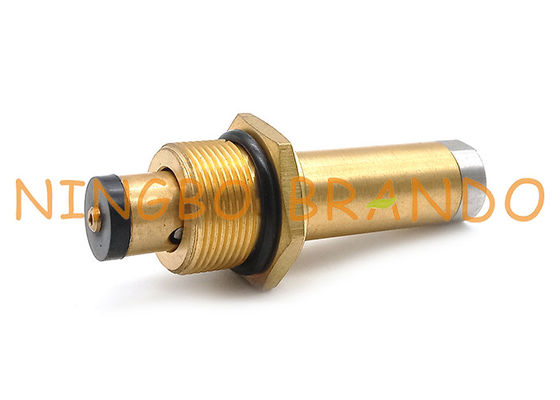

Solenoid Valve Armature

Brando provides customized solenoid armature services for various types of solenoid valves.

Our solenoid armature assembly has high quality, precise stroke control, long service life, and a full range of products, including 3/2-way, 2/2-way, normally open, normally closed, and threaded or flanged connection available.

Brando armatures are widely used in pneumatic, hydraulic, fluid control fields, covering textiles, home appliances, automobiles, refrigeration and other automation control industries.

Condition:New
Applicable Industries:LPG/CNG
Type:Fittings
Place of Origin:Zhejiang, China
Brand Name:Brando
Guide Tube Outer Diameter:13.0mm
Installation Height for Coil Assembling:29.1mm
Plunger Seal for Orifice Diameter:10.6mm
Guide Tube Material:Brass
Seal Material:NBR
Mounting Type:M18x1 Thread
Voltage:AC, DC All Available
Position and Way:2/2 Way
Non-working Status:Normally Close

Dimension of BAPC213043044 Armature Assembly:

Technical Data:

Product Features:

1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.

2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.

3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.

4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.

5 Shading ring:
Cooper and silver material available.

6. Washer and retaining nut provided if has demands.

More Solenoid Valve Armature Assembly for you to choose:

*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

*According to tube material: Brass, Stainless Steel

*According to valve application:

1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
