| Place of Origin: | Ningbo CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | BAPC212841005 |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard carton |
| Delivery Time: | 6 work days |
| Payment Terms: | D/A, D/P, MoneyGram, Western Union, L/C |
| Supply Ability: | 60000 pcs per month |
| Standard Or No: | Standard | Color: | Brass And Silvery |
|---|---|---|---|
| Seat Type: | Pentagon Seat | Type: | 2/2 Way NC |
| Item Weight: | 44g | Connection: | Flange |
| High Light: | Threaded Solenoid Valve Stem,Plunger Solenoid Valve Stem,Refrigeration Solenoid Valve Armature |
||

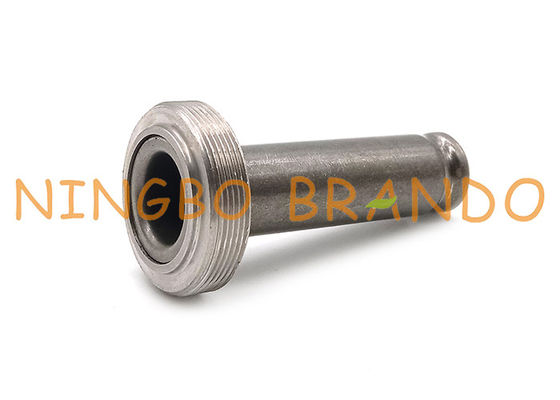

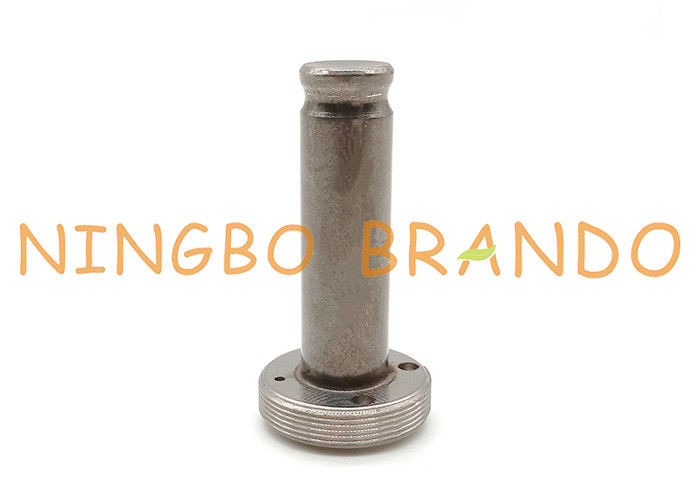

Threaded Type Stainless Steel Armature Plunger Solenoid Valve Stem
Technical data of Solenoid Valve Armature Assembly:
|
Model Number
|
BAPC212851096
|
|
Guide Tube Outer Diameter
|
12.8mm
|
|
Installation Height for Coil Assembling
|
51.1mm
|
|
Plunger Seal for Orifice Diameter
|
9.0mm
|
|
Guide Tube Material
|
Stainless Steel
|
|
Seal Material
|
NBR, HNBR, FKM, EPDM, Silicone, all available
|
|
Connection Type
|
Flange
|
|
Voltage
|
All range of AC and DC available
|
|
Position and Way
|
2/2 Way
|
|
Non-working Status
|
Normally Closed
|
|
Applicaiton Examples
|
JICI, JISI, JIFI, JIHI Pulse Valve
|
|
Customized Service
|
Provided, welcome show us sample or drawing
|
Main dimension of Solenoid Valve Armature Assembly:
Brando Factory Production of Solenoid Valve Armature Assembly:
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Product Features of Solenoid Valve Armature Assembly:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
