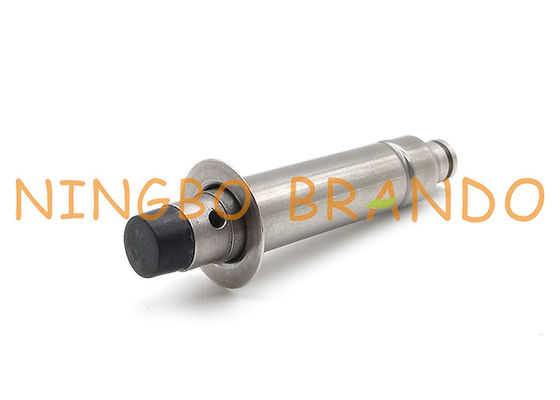

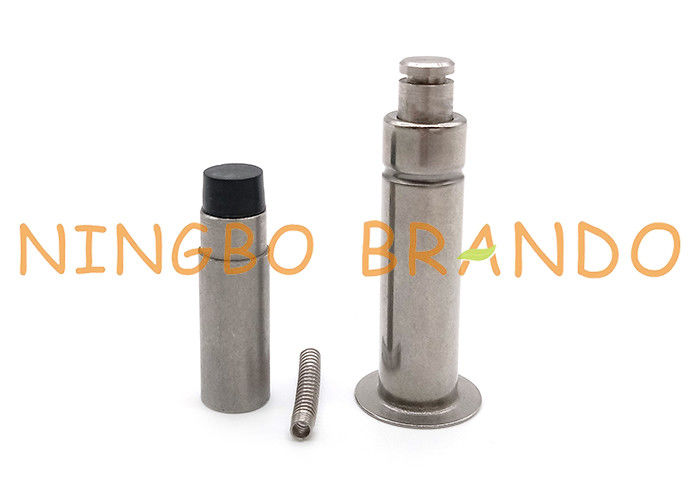

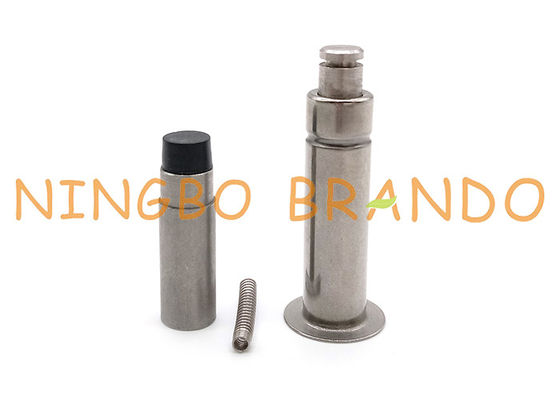

A complete armature consist of sleeve, moving iron core, the static iron core and the electromagnetic coil, moving iron core and static iron core in the sleeve. The pilot repairt kits K0380 could be as replacement for most goyen pulse jet valves, like codes of T series, DD series, MM series, FS series and RCA3D2.
Normally Used For: Dust Collector Pulse Valve
Guide Tube OD: 12mm
2 Way / 3Way: 2 way
NC / NO: NC
Voltage: AC/DC
Guide Tube material: Stainless steel 304
Seal material: NBR
Moving Core material: Electromagnetic Stainless Steel
Youtube Video of M1131B K0380 Solenoid Valve Rebuild Kit:
Technical data of K0380 M1131B Solenoid Pilot Operator Repair Kit:
Model Number
BAPC212050501
Guide Tube Outer Diameter
11.9mm
Installation Height for Coil Assembling
48.6mm
Plunger Seal for Orifice Diameter
8.6mm
Guide Tube Material
Stainless Steel
Seal Material
NBR, HNBR, FKM, EPDM, Silicone, all available
Connection Type
Flange
Voltage
All range of AC and DC available
Position and Way
2/2 Way
Non-working Status
Normally Closed
Application Examples
Goyen Type 3D Pilot Solenoid Valve
Solenoid Pilot Operator and Repair Kits(Buna)
Valve Model
Pilot Operator or Coil Repair Kit
RCA3D2 110V RCA3D0-331
Solenoid Kit
COIL QT 100/120V 50/60HZ
K0380 (M1131B)
G601206-103
RCA5D2 110V
AC Solenoid Kit
DCSolenoid Kit
COIL B2 110/120v 50/60HZ
K0580(M1141B)
M1160B
G601200-103
3DS-301 100/120V
Solenoid Kit
COIL QR 100/120V 50/60HZ
K0380(M1131B)
G601207-103
RCA3DM-301 100/120V
Solenoid Kit
COIL QR 100/120V 50/60HZ
K0380(M1131B)
G601207-103
Dimension of K0380 M1131B Goyen Type Pulse Valve Solenoid Kit:
1. Fixed core and movable core (plunger):
Adopting rustproof and corrosion-resistant material with high magnetic conductivity and low remanence to ensure armature assembly durable and smart acting.
2. Guide tube (plunger tube):
Options of brass and stainless steel, grade of H62 or SUS304;
Wall thickness from range of 0.25~2.5mm, others could be customized;
Kinds of welding type to hold various working pressure, such as laser welding, argon-arc welding, silver soldering. Machining from entire solid bar directly is also available.
3. Spring:
Rustproof SUS304 stainless steel, with good performance of restore.
4. Seals:
Options of NBR, HNBR, FKM, EPDM, PTFE, food grade materials, welcome your other requirements.
5 Shading ring:
Cooper and silver material available.
6. Washer and retaining nut provided if has demands.
