Replacement Autel Type Dust Collector System Solenoid Valve Stem

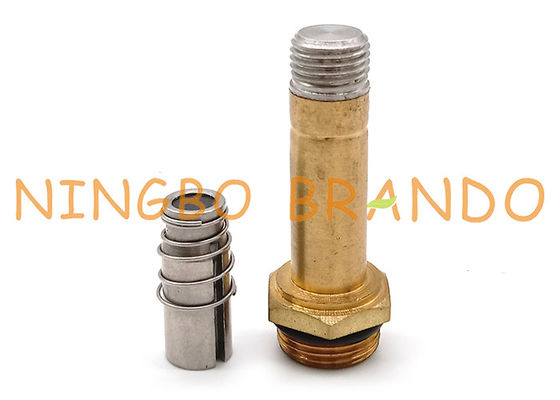

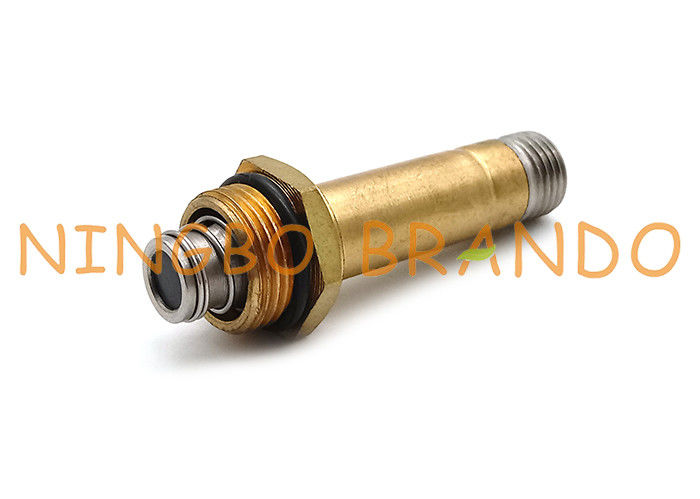

BAPC210028009 Autel Type repair kit armature plunger, outer diameter is 10.0mm, Installation height for coil assembly is 28.0mm, plunger seal orifice diameter is 5.5mm. Plunger tube made by brass, Moving core is stainless steel.
Dimension of BAPC210028009 Armature Assembly:
Technical Data:
|
Model Number
|
|
|
Guide Tube Outer Diameter
|
|
|
Installation Height for Coil Assembling
|
|
|
Plunger Seal for Orifice Diameter
|
|
|
Guide Tube Material
|
|
|
Seal Material
|
NBR, HNBR, FKM, EPDM, Silicone, all available
|
|
Connection Type
|
|
|
Voltage
|
All range of AC and DC available
|
|
Position and Way
|
|
|
Non-working Status
|
|
|
Customized Service
|
Provided, welcome show us sample or drawing
|
Solenoid valve armature characteristics
1,The static and movable core is made by rustproof and corrosion-resistant material with high magnetoconductivityand low remanence ,and it is also durable and quick.
2,The plunger tube is made by H62 copper or SS304 ,and the tickness for selection is at the range of 0.25-2.5mm3,The seat of plunger tube is made by H59 copper or ss304.
4,Adopting the laser solder technology makes the products more perfect and safe.
5,The spring is made by imported stainless steel wire ,which has good performance of pressure and restore.
6,The sealant can be heatproof oilproof and also can be exclusively applicable to food . All can do according to yourrequirements.
7,The specification is including Normal Open ,Normal Close ,and AC,DC etc.Ilf you have any other requirements plslet us know.
More Solenoid Valve Armature Assembly for you to choose:
*According to tube OD: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.
*According to tube material: Brass, Stainless Steel
*According to valve application:
1. Pulse Solenoid Valve Armature Assembly, 2. Water Solenoid Valve Armature Assembly, 3. Pneumatic Solenoid Valve Armature Assembly, 4. Refrigeration Solenoid Valve Armature Assembly, 5. Injector Rail Armature Assembly, 6. Air-Jet Loom Solenoid Valve Armature Assembly, 7. House Appliances Solenoid Valve Armature Assembly, 8. Automobile Solenoid Valve Armature Assembly, 9. Medical Solenoid Valve Armature Assembly, etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
