Name: 1020/2S 1/4'' Direct Acting SAE Flare NC Refrigeration Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 1020/2
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

1020/2S 1/4'' Direct Acting SAE Flare NC Refrigeration Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	1020/2

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Screw Connections:	1/4 "SAE	Power:	Solenoid
Media:	Refrigerant	Structure:	Direct Acting
Material:	Brass	Function:	Normally Closed
Voltages:	AC110V, AC220V, DC24V	Ambient Temperature:	-35 - 105 °C
Application:	Refrigeration Parts	Refrigerants:	R125 R134a R152a R22 R404A R407A R407C
Highlight:	1020/2S Refrigeration Solenoid Valve , 1/4'' Direct Acting Refrigeration Solenoid Valve , CASTEL Type 1020/2

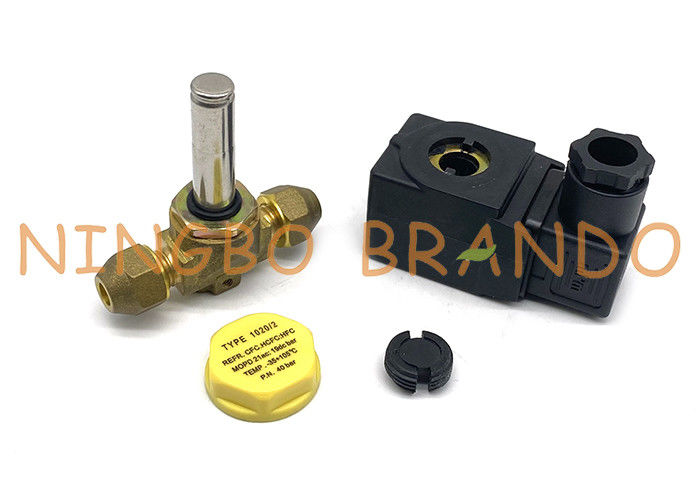

1020/2S 1/4'' Direct Acting SAE Flare NC Refrigeration Solenoid Valve

1020/2S: 1/4'' Direct Acting NC Refrigeration Solenoid Valve SAE Flare Connection Without Coil.

1020/2A6: 1/4'' Direct Acting NC Refrigeration Solenoid Valve SAE Flare Connection With 220/230 VAC(A6) Coil.

1020/2A7: 1/4'' Direct Acting NC Refrigeration Solenoid Valve SAE Flare Connection With 240 VAC(A7) Coil.

HF2 HF3 HM2 HM3 HM4 CM2 Coil can be mounted on the valve.

Technical Data:

Operating Principles	Model Number	SAE Port	Seat size nominal Ø [mm]	Kv Factor [m3/h]	PS [bar]	TS[℃]		TA[℃]
						min	max	min	max
Direct Acting	1020/2	1/4''	2, 5	0, 175	45	-35	+110	-35	+50
	1020/3	3/8''	3	0, 23
Diaphragm Pilot Operated	1064/3	3/8''	6, 5	0, 80	45	-35	+105	-35	+50
	1064/4	1/2''
	1070/4	1/2''	12, 5	2, 20
	1070/5	5/8''		2, 61
	1090/5	5/8''	16, 5	3, 80
	1090/6	3/4''		4, 80
Piston Pilot Operated	1034/3	3/8''	6, 5	1, 00	45	-35	+110	-35	+50
	1034/4	1/2''
	1040/4	1/2''	12, 5	2, 40
	1040/5	5/8''		3, 00
	1050/5	5/8''	16, 5	3, 80
	1050/6	3/4''		4, 80

Dimension:

1020/2S 1/4'' Direct Acting SAE Flare NC Refrigeration Solenoid Valve 0

Replacement Castel Type Solenoid Coil:

1020/2S 1/4'' Direct Acting SAE Flare NC Refrigeration Solenoid Valve 1

APPLICATION
The solenoid valves illustrated in this chapter are designed for installation on commercial refrigeration systems and on civil and industrial air conditioning plants that use the following refrigerant fluids:
• HCFC (R22)
• HFC (R134a , R404A , R407C , R410A , R507)
• HFO and HFO/HFC mixtures (R1234ze , R448A , R449A, R450A , and R452A)

Furthermore, the same solenoid valves, up to DN 25, that is models 1078*9, 1098/9, 1079/11 and 1099/11, can also be installed on systems using the following refrigeration fluids:
• HFC (R32)
• HFO (R1234yf)
