| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | EVR6-038S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size (in): | 3/8'' Inch | Inlet Connection Type: | SOLDER, ODF |
|---|---|---|---|
| Type: | EVR 6 | Valve Operation: | SERVO-DIAPHRAGM |
| Function: | Normally Closed (NC) | Temperature: | -40~80 °C |
| Body Material: | Brass | Seal Material: | PTFE |
| System Line Application: | Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line | Refrigerants: | R22 R404A R407A R407C R125 R134a R152a |
| High Light: | 032L1212 Refrigeration Solenoid Valve,032L5219 Refrigeration Solenoid Valve,032L7115 EVR 6 Solenoid Valve |
||
EVR 6 3/8'' 032L1212 032L5219 Danfoss Type Refrigeration Solenoid Valve
Technical Data:
|
Type
|
Current Type
|
Connection Size
|
Max. working pressure
|
Kv valve [m3/h]
|
Cv valve [gal/min]
|
Coder No.
|
||
|
[mm]
|
[in.]
|
[bar]
|
[psi]
|
|||||
|
EVR6
|
a.c./d.c.
|
-
|
1/2
|
45.2
|
655
|
0.80
|
0.92
|
032F1209
|
|
a.c./d.c.
|
-
|
3/8
|
45.2
|
655
|
0.80
|
0.92
|
032F1212
|
|
|
a.c./d.c.
|
10
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1213
|
|
|
a.c./d.c.
|
12
|
-
|
45.2
|
655
|
0.80
|
0.92
|
032F1236
|
|

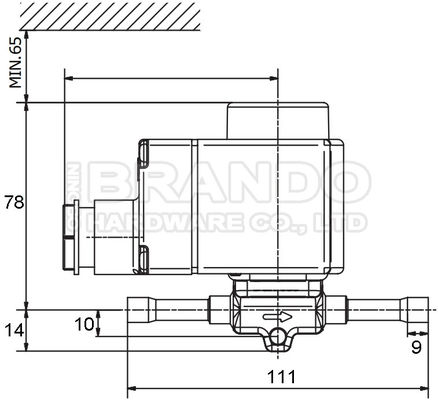

Dimension:
Pilot-operated solenoid valve operation
In a pilot-operated solenoid valve, the plunger does not open the main port directly. Instead, the following operation occurs:
1 The plunger opens a pilot port.
2 Pressure on top of a piston is released through the pilot port, thus creating a pressure imbalance across the piston.
3 With the pressure underneath the piston now greater than the pressure on top, the piston will move in an upward direction, opening the main port.
4 When the plunger drops, it closes the pilot port; thus, the pressure above and below the piston equalizes, and the piston closes the main port.
5 The pressure difference across the valve, acting on the area of the main port, holds the piston in a tightly closed position.
