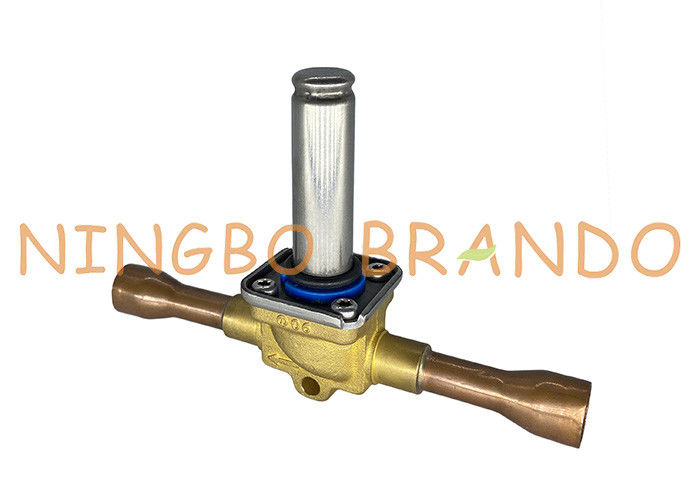

EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve

EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve

    • EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve
    • EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve
  • EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: EVR6-012S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Port Size (in): 1/2'' Inch Inlet Connection Type: SOLDER, ODF
    Type: EVR 6 Valve Operation: SERVO-DIAPHRAGM
    Function: Normally Closed (NC) Temperature: -40~80 °C
    Body Material: Brass Seal Material: PTFE
    System Line Application: Discharge Line, Hot Gas Defrost Line, Liquid Line, Suction Line Refrigerants: R22 R404A R407A R407C R125 R134a R152a
    High Light:

    032L1209 Refrigeration Solenoid Valve

    ,

    032L7144 Refrigeration Solenoid Valve

    ,

    032L7308 EVR 6 Solenoid Valve

    EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve



    Technical Data:


    Type
    Current Type
    Connection Size
    Max. working pressure
    Kv valve [m3/h]
    Cv valve [gal/min]
    Coder No.
    [mm]
    [in.]
    [bar]
    [psi]
    EVR6
    a.c./d.c.
    -
    1/2
    45.2
    655
    0.80
    0.92
    032F1209
    a.c./d.c.
    -
    3/8
    45.2
    655
    0.80
    0.92
    032F1212
    a.c./d.c.
    10
    -
    45.2
    655
    0.80
    0.92
    032F1213
    a.c./d.c.
    12
    -
    45.2
    655
    0.80
    0.92
    032F1236

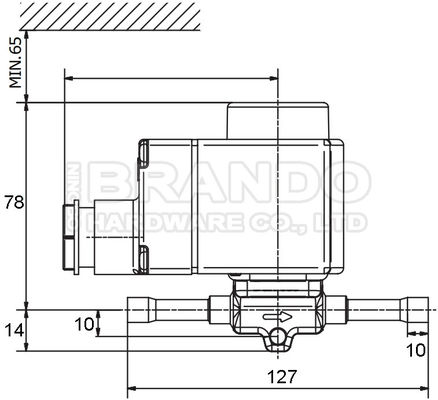

    Dimension:

    EVR 6 1/2'' 032L1209 032L7144 Danfoss Type Solenoid Valve 0



    Solenoid valves play an important role within refrigeration and air conditioning systems, controlling the flow of refrigerants. Though their base function –turning the refrigerant flow on and off – is quite simple, this function is key to ensuring system performance.
    Understanding how solenoid valves work increases the likelihood that contractors will install, remove and reinstall valves correctly, ensuring optimum system performance and protection.



    A solenoid valve operates in the following way:

    1 When the solenoid coil is electrically energized, it produces a magnetic field that attracts iron and many of its alloys.
    2 An iron armature or plunger is drawn up into the core of the solenoid.
    3 A stem and pin or poppet attached to this plunger opens the valve port.
    4 When the solenoid valve is de-energized, the plunger falls, and the poppet closes the valve port.





    More Refrigeration Valve:

    1. Refrigeration Solenoid Valve:
    Danfoss Type:
    EVR 3, EVR 6, EVR 10, EVR 15, EVR 20, EVR 22, EVR 25, EVR 32, EVR 25, EVRA 25, EVRA 32, EVRA 40;
    Castel Type: 1020/2, 1020/3, 1064/3, 1064/4, 1070/4, 1070/5, 1070/6, 1090/5, 1090/6, 1028/2, 1028/3, 1068/3, 1068/4, 1078/4, 1078/5, 1079/7, 1078/9, 1079/11, 1079/7, 1099/11, 1078/11, 1079/13.


    2. Refrigerator Solenoid Valve: FDF, SDF ......


    3. Expansion Valve: Thermostatic / Thermal Expansion Valve, Automatic Expansion Valve, Electronic Expansion Valve ......



    danfoss refrigeration solenoid valve ammonia refrigeration solenoid valve castel refrigeration solenoid valve
    Danfoss Type Solenoid Valve Ammonia Refrigeration Valve Castel Type Solenoid Valve
    Refrigeration coil Refrigeration 2 solenoid valve refrigerator
    Refrigeration Solenoid Valve Coil Expansion Valve Refrigerator Solenoid Valve



    Focus on your demands, Offer you best solution:
    √ Contact us if some points you have doubt
    √ Contact us if somewhere need to change
    √ Contact us if not the one you are looking for
    √ Contact us if you are doing designing


    Welcome to your any question and inquiry!
