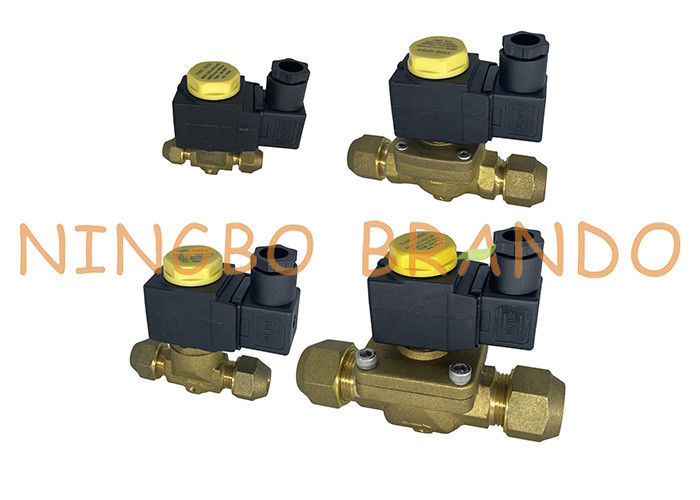

Name: Castel Type SAE Flare Refrigeration Solenoid Valve
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 1020/2, 1064/3, 1070/4, 1090/6
Price: 65.00 USD
Availability: InStock

Home Products Refrigeration Solenoid Valve

Castel Type SAE Flare Refrigeration Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	1020/2, 1064/3, 1070/4, 1090/6

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Screw Connections:	1/4'', 3/8'', 1/2'', 3/4"SAE	Power:	Solenoid
Media:	Refrigerant	Structure:	Diaphragm Pilot Operated
Material:	Brass	Function:	Normally Closed
Voltages:	AC110V, AC220V, DC24V	Ambient Temperature:	-35 - 105 °C
Application:	Refrigeration Parts	Refrigerants:	R125 R134a R152a R22 R404A R407A R407C
Highlight:	Castel Type Refrigeration Solenoid Valve , SAE Flare Refrigeration Solenoid Valve , Air Conditioner Solenoid Valve

Castel Type SAE Flare Refrigeration Solenoid Valve

Technical Data:

Operating Principles	Model Number	SAE Port	Seat size nominal Ø [mm]	Kv Factor [m3/h]	PS [bar]	TS[℃]		TA[℃]
						min	max	min	max
Direct Acting	1020/2	1/4''	2, 5	0, 175	45	-35	+110	-35	+50
	1020/3	3/8''	3	0, 23
Diaphragm Pilot Operated	1064/3	3/8''	6, 5	0, 80	45	-35	+105	-35	+50
	1064/4	1/2''
	1070/4	1/2''	12, 5	2, 20
	1070/5	5/8''		2, 61
	1090/5	5/8''	16, 5	3, 80
	1090/6	3/4''		4, 80
Piston Pilot Operated	1034/3	3/8''	6, 5	1, 00	45	-35	+110	-35	+50
	1034/4	1/2''
	1040/4	1/2''	12, 5	2, 40
	1040/5	5/8''		3, 00
	1050/5	5/8''	16, 5	3, 80
	1050/6	3/4''		4, 80

Dimension:

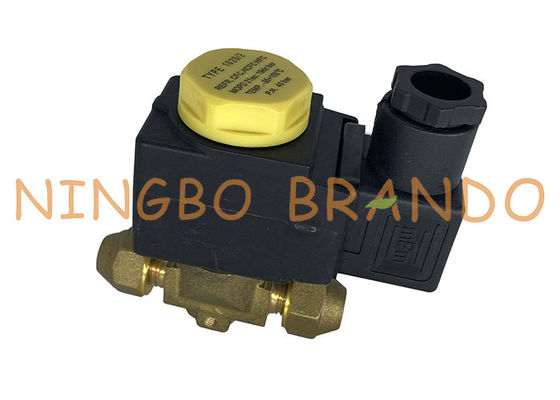

1020/2 Refrigeration Solenoid Valve

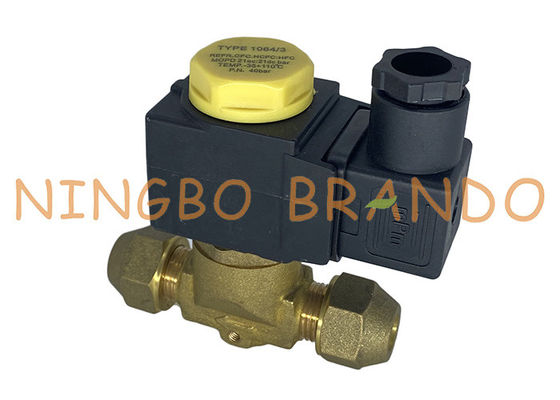

1064/3 Refrigeration Solenoid Valve

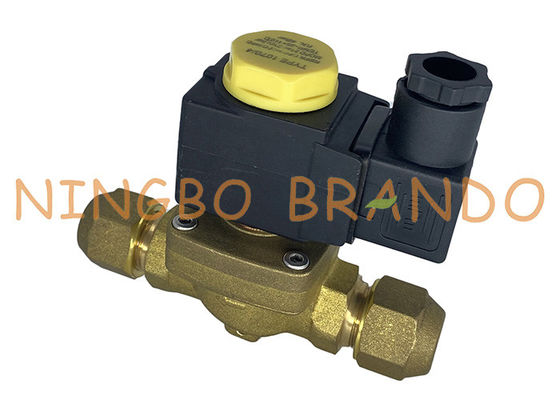

1070/4 Refrigeration Solenoid Valve

Castel Type SAE Flare Refrigeration Solenoid Valve 3

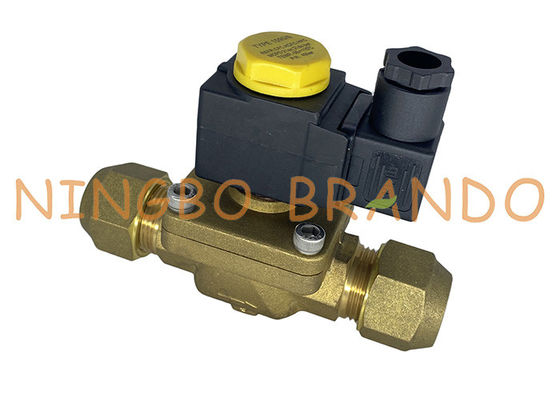

1090/6 Refrigeration Solenoid Valve

Replacement Castel Type Solenoid Coil:

Castel Type SAE Flare Refrigeration Solenoid Valve 4

OPERATION
The coils are normally closed (NC). This means that when the coil is not energised, the plunger closes the fluid passage. When the coil is energised, the plunger opens the valve seat connecting the inlet to the outlet.

without coil (with the S suffix), and in the version with coil series 9300, type HF2 - “FAST LOCK” (A6 suffix with coil 9300/RA6-220/230 VAC and A7 suffix with coil 9300/RA7 - 240 VAC).
The valves series 1020 and 1028 are direct acting valves. Their operation depends only on the magnetic field produced by the current flow into the coil. Opening/closing of main valve seat, the only seat, is directly controlled by the mobile plunger.

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
