| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DIN43650B+Bases |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Product Family: | Valve Connectors | Connector Type: | Receptacle |
|---|---|---|---|
| Type Of Contact / Gender: | Male | Connector Design: | Straight |
| Number Of Pins: | 2+PE | Coding: | B |
| Contact Resistance: | ≤ 10 MOhm | Type Of Connection: | Solder / PE Screw |
| Attachment Type: | Central Screw | ||
| High Light: | DIN 43650B Connector and Bases,connector bases,Male Solenoid Valve Connector |
||

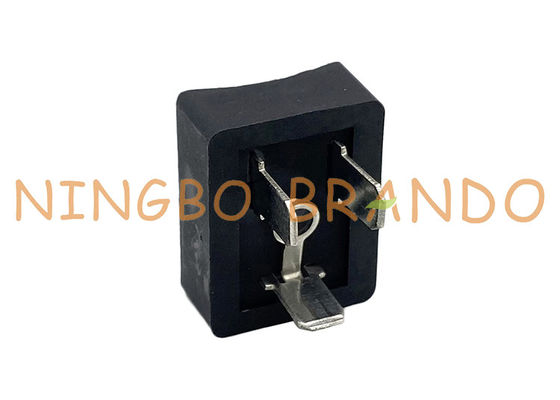

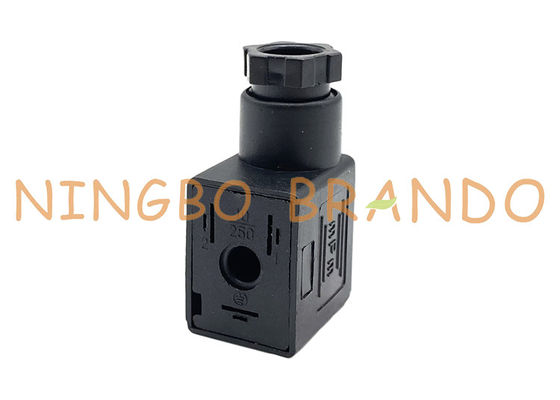

GSN 2P+E DIN 43650 B Male Solenoid Valve Connector and Bases 622201
DIN EN 175301-803 type B Base: 20.8 x 28.6
A comprehensive range of cable sockets and appliance connector bases typically for use with solenoid valves on pneumatic and hydraulic equipment. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.
2P+E
Ambient temperature: -40°C to +90°C
The bases range is used extensively together with connectors to provide electrical connections in a wide range of applications. The most common application for mPm bases is in conjunction with hydraulic, pneumatic or electromagnetic devices. Other applications include, for example:
pressure transducers,
proximity switches,
level sensors,
limit switches,
thermostats and low energy motors.
Diemension:

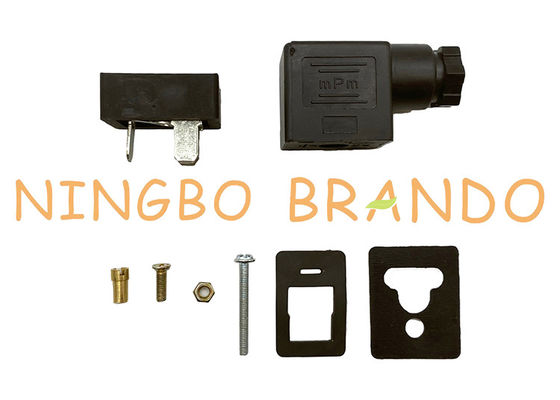

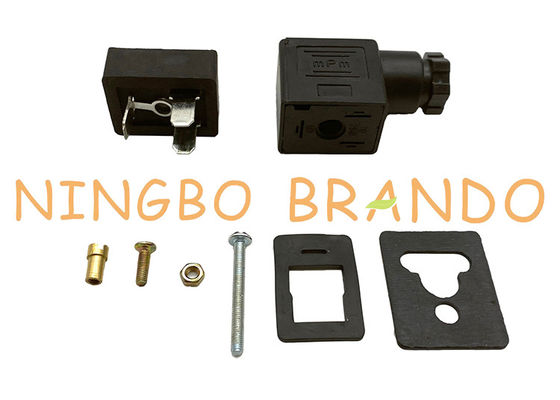

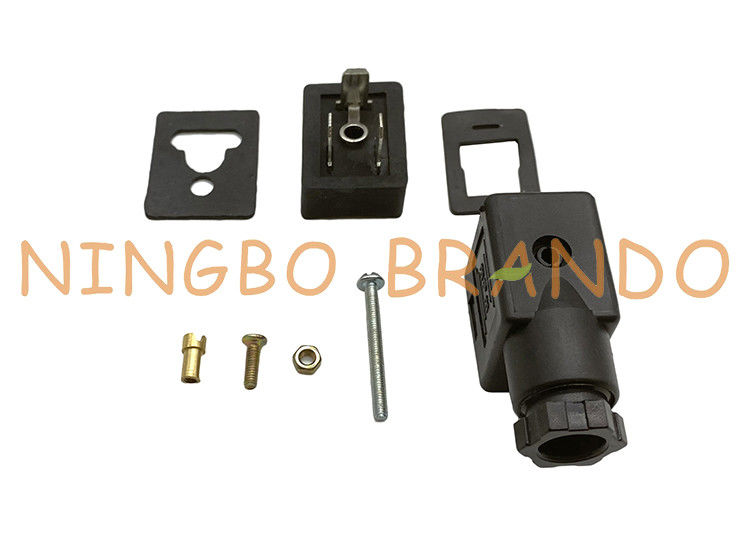

DIN43650B Plug Kit:
Technical Data:
| Contact Spacing | 11mm |
| Rated Voltage | 250VAC/300VDC |
| Operating Current | 10A |
| Max. current | 16A |
| Max. wire gauge | 1,0 mm2 |
| Termination | Solder |
| Housingmaterial | PA+30%GF |
| Temperature Range | –40 °C to +125 °C |
| With/without PE-screw | Available |
