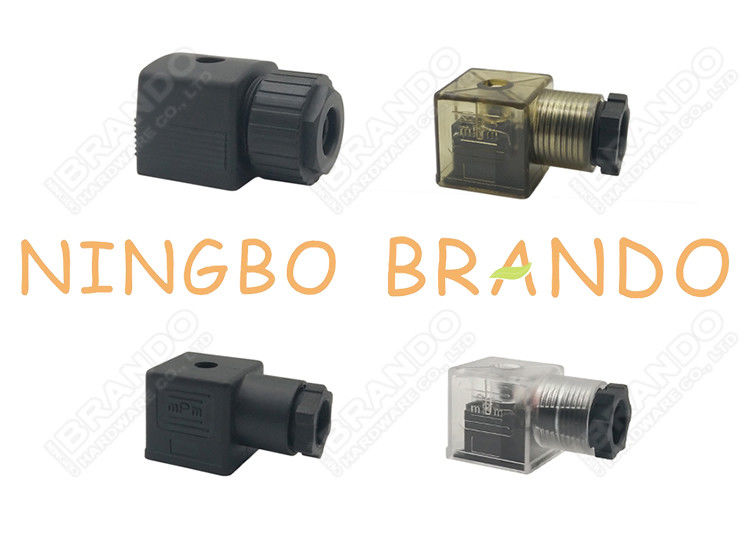

18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064

18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064

  • 18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064
18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DIN43650A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Type: DIN Application: Power
Material: Nylon Pin Count: 2 + 1Ground; 3 + 1Ground
Pins: 3PIN Contact Resistance: ≤5mΩ
Protection Class: IP65 Fixing Screw: M3x28
Live Contact Distance: 18mm
High Light:

MPM Field Attachable Solenoid Coil Connector

,

DIN Form A Solenoid Coil Connector

,

DIN 43650A Valve Connector

18mm MPM Brown Nylon DIN43650A Solenoid Coil Connector For Pneumatic Electrical Industies



Solenoid valve type A solenoid valve plug connector-2+PE/3+PE; pin spacing is 18mm, round or square base
B-type solenoid valve plug connector-2+PE; there are two specifications of pin spacing 9mm or 11mm
C-type solenoid valve plug connector-2+PE/3+PE; pin spacing is 8mm or 9.4mm




ELECTRICAL
Max. Current: 16.0A
Contact Resistance: ≤ 15 miliohms max.
Insulation Resistance: 100 Megohms min.
Max. Conductor: 1.50mm² / 16AWG



MECHANICAL
Insertion and Withdrawal Force: 2+GND ≤ 60N



Certification
UL recognized cURus marked, file E218123 (product available upon request or specific part number)



PHYSICAL
Durability: min. 50 cycles
Contact Area: Silver
Solder Tail Area: Silver
Operating Temperature with:
Nitrile Rubber (NBR) Gasket: -40° to +90°C
Silicone Gasket: -40° to +125°C
Cable Diameter Range: 4.00-9.00mm
Live Contact Distance: 18.00mm



ENVIROMENTAL
IP67 Sealing Protection



Dimension of Soelnoid Valve Connector:

DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²




More Solenoid Connectors:

18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064 3 18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064 4 18mm MPM Field Attachable DIN Form A Solenoid Coil Connector 121201 121207 121023 121064 5
DIN43650A DIN43650B DIN43650C



Product Features:

The connectors is used extensively to provide electrical connection in a wide range of applications.
The most common application for connectors is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves.
Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.
BRANDO company manufactures an extensive and comprehensive range of connectors with standard options including for example LED illuminated devices as well as VDR, diodes or transil diodes (with or without illuminated device) to offer protection against over voltage peaks.
Our connectors offer protection from dust and water (IP65 or IP67 on specific request) when correctly installed with screw and gasket which are supplied together with the connector.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
