121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector

121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector

  • 121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector
121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DIN43650B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Type: Field Attachable Connector Coupling Type: Internal Thread
Material: Nylon Pin Count: 2 + 1Ground
Pins: 3PIN Contact Resistance: ≤5mΩ
Fixing Screw: M3x28 Color: Black
Distance: 11mm
High Light:

EN175301-803 Solenoid Coil Connector

,

Field Wireable Solenoid Coil Connector

,

DIN 43650 B Field Attachable

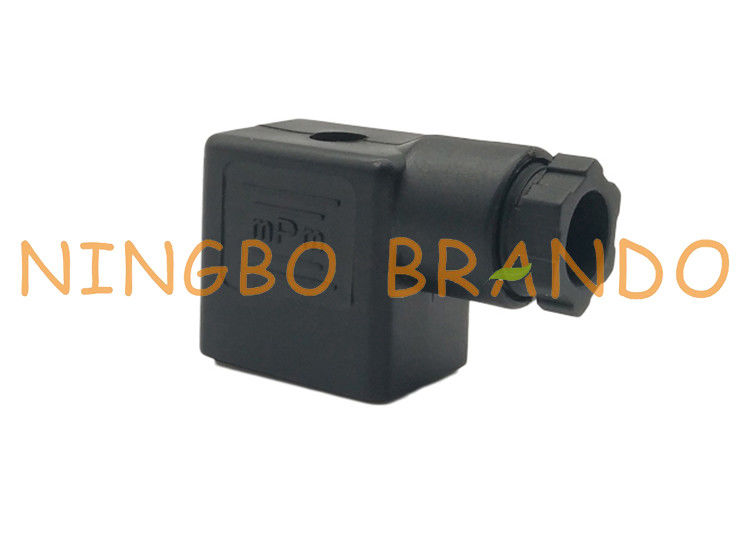

121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector



Solenoid valve type A solenoid valve plug connector-2+PE/3+PE; pin spacing is 18mm, round or square base
B-type solenoid valve plug connector-2+PE; there are two specifications of pin spacing 9mm or 11mm
C-type solenoid valve plug connector-2+PE/3+PE; pin spacing is 8mm or 9.4mm



Ergonomic external-nut design
Provides greater and consistent torque for more uniform seal between connector and cable
20% greater cable-retention force over internal-nut designs for increased reliability

Each connector accommodates PG9, PG11 cable, up to 9.00mm outer diameter
One size fits all; cost savings achieved through inventory reduction

Internal volume of Form C housing increased by 30% with no change to external dimensions of connector
Improves handling, wire routing and speed of assembly over internal-nut version



Dimension of Soelnoid Valve Connector:

DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
Solenoid Valve Coil Connector DIN 43650 Form A DIN 43650A 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²




More Solenoid Connectors:

121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector 3 121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector 4 121203 121209 EN175301-803 Ex DIN 43650 Form B Field Wireable MPM Solenoid Coil Connector 5
DIN43650A DIN43650B DIN43650C



Product Features:

The connectors is used extensively to provide electrical connection in a wide range of applications.
The most common application for connectors is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves.
Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.
BRANDO company manufactures an extensive and comprehensive range of connectors with standard options including for example LED illuminated devices as well as VDR, diodes or transil diodes (with or without illuminated device) to offer protection against over voltage peaks.
Our connectors offer protection from dust and water (IP65 or IP67 on specific request) when correctly installed with screw and gasket which are supplied together with the connector.
