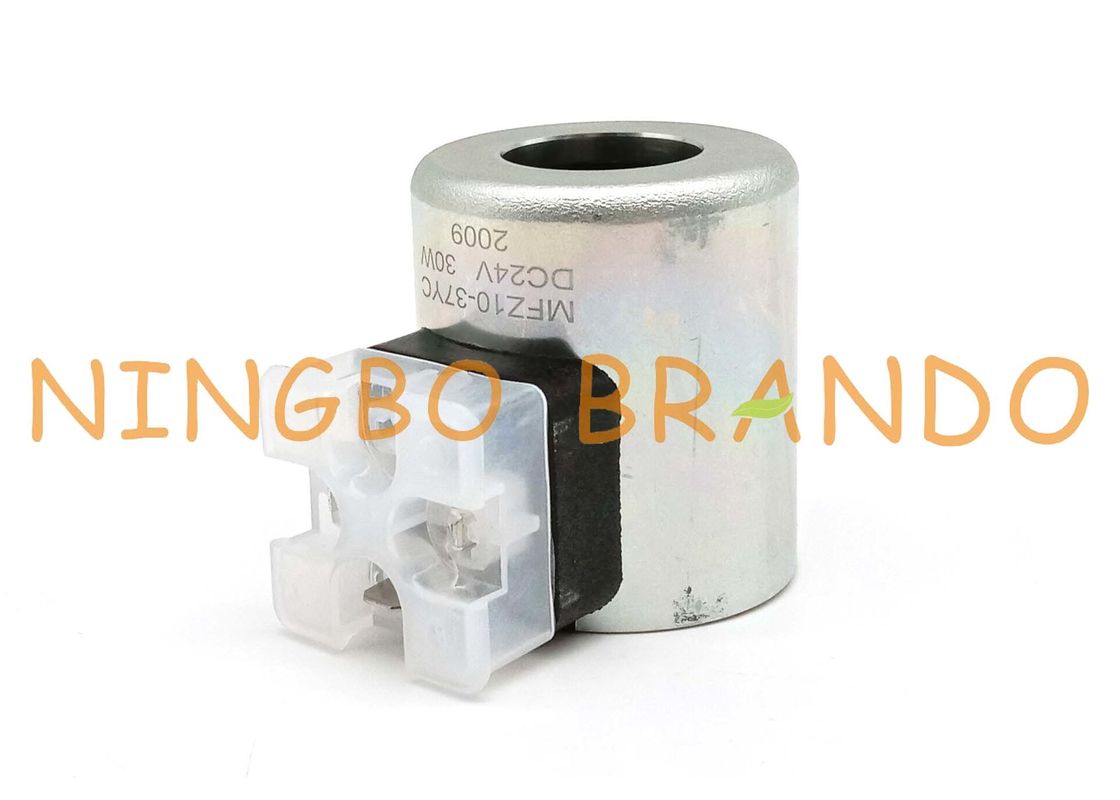

Rexroth Type Hydraulic Solenoid Coil R900021389 021389 XEA 324 24V DC

Rexroth Type Hydraulic Solenoid Coil R900021389 021389 XEA 324 24V DC

Rexroth solenoid coil is also known as Rexroth solenoid valve coil or Rexroth coil. The solenoid coil works as an actuator based on electromagnetic induction principle. When the flowing of electricity passes through a wire, it creates an electromagnetic field around this wire. The wire in the electromagnetic field will develop the electromagnetic interaction on other wires in the range of electromagnetic field. The interaction works on the wire itself called self-induction, which means the wire creates electricity and turns it into the electromagnetic field on its own. The electromagnetic field created by the self-induction has further influence on the current in the wire. There is a relative concept named mutual induction, which means the wire have electromagnetic interaction on other wires around the electromagnetic field.

Specification:

1. Voltage: 12VDC, 24VDC, 110VAC, 220VAC
2. Power: 20W, 25W, 26W, 28W, 30W, 33W, 37W, 46W
3. Connector Type: DIN 43650A, DEUTCH, AMP, Flying Leads, Plug In Type
3. Valve Type: Rexroth directional control valve
4. Valve Sizes: NG6, NG10.

Dimension & Data of Hydraulic Solenoid Valve Coil:

Picture	Dimension	Model	BB23250504
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	30W
		Connector Type	DIN43650A
		Insulation Class	F
		Protection Class	IP65

Picture	Dimension	Model	BB23660407
		Voltage	12VDC, 24VDC, 110VAC, 220VAC
		Power	46W
		Connector Type	DIN 43650A
		Insulation Class	F
		Protection Class	IP65

Picture	Dimension	Model	BB22046009
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	DIN43650A
		Insulation Class	H
		Protection Class	IP65

Picture	Dimension	Model	BB23745309
		Voltage	110VAC, 220VAC
		Power	28W
		Connector Type	2 Pins (Plug In Type)
		Insulation Class	F
		Protection Class	IP65

Brando Factory Production of Solenoid Valve Coil:

Other hydraulic solenoid valve coil fo you to choose:

Vickers Type Hydraulic Solenoid Valve Coil:

Yuken Type Hydraulic Solenoid Valve Coil:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
