DIN 43650 Form C Solenoid Valve Coil Electrical Connector Plugs With LED

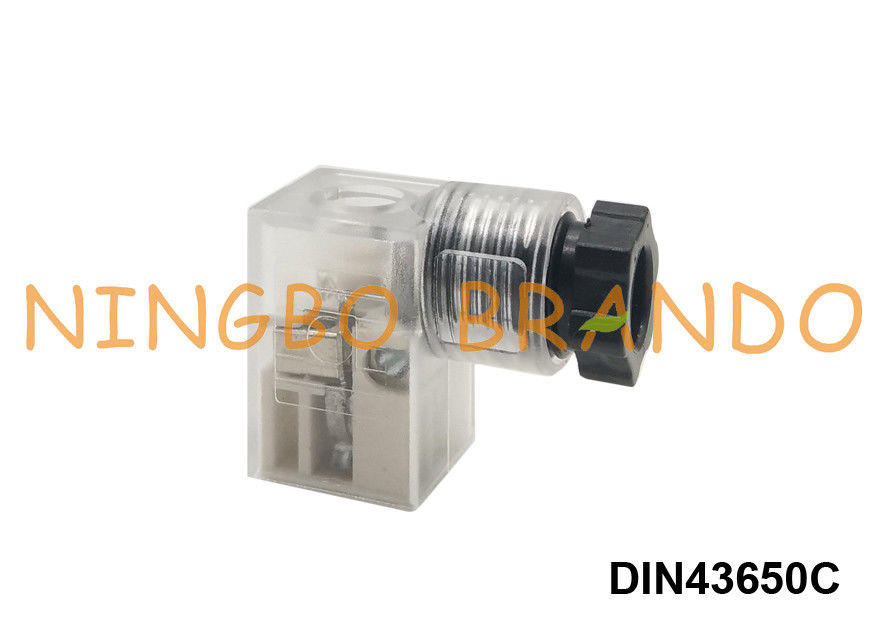

DIN 43650 Form C Solenoid Valve Coil Electrical Connector Plugs With LED

DIN 43650 Form C connectors feature flat blade pins with 8mm or 9.4mm pin spacing between the pins. DIN 43650 connectors are primarily used with solenoid valves offering a secure and water resistant method for applying power. The Din 43650  Form C connectors can be found in hydraulics and pneumatics applications as well as marine applications, pressure sensors and switches, optical, limit and proximity switches.

Form C male connectors are panel mounted or made for molding and can be either 2 + ground or 3 + ground. The hardwired Form C connectors all have PG 7 cable entries with 2 + ground or 3 + ground. DIN 43650 Form C connectors with molded cable are 3 + ground or 2 + 2 ground and can come with 2, 3, 5 or 10 meter cable lengths. Circuited versions of the hardwired and molded connectors have options including an LED indicator to confirm the voltage supply and MOV surge suppression or diodes to give overvoltage protection to the source and load. The M12 DIN connectors are fitted to an M12 molded cable plug and come with or without a circuit.

Dimension & Data of Solenoid Coil Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

FAQ:

What is the advantages to use DIN Connector?

Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.

What are DIN 43650 solenoid connectors used for?
DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.
