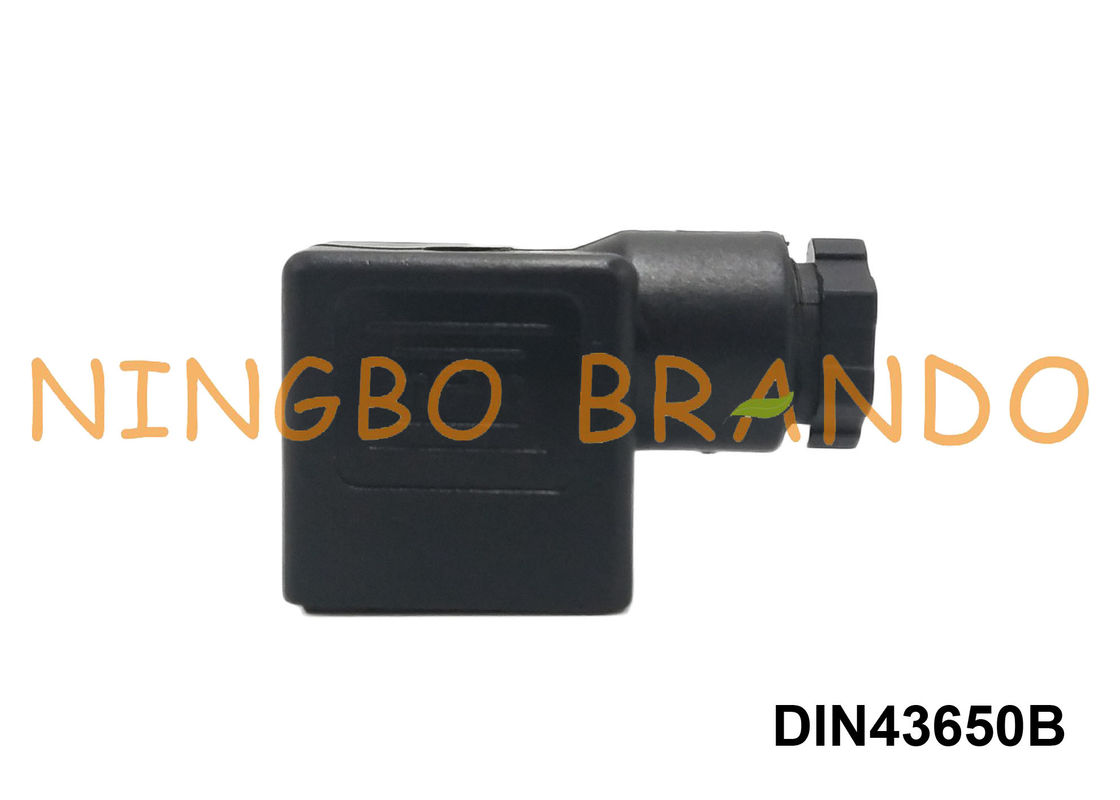

AC/DC Solenoid Valve Coil Connector DIN 43650 Form B DIN43650B

AC/DC Solenoid Valve Coil Connector DIN 43650 Form B DIN43650B

DIN 43650 Connectors and Cordsets are a reliable and robust quick-disconnect alternative to hardwiring for remote actuation of solenoid valves on the factory floor. Choose from the largest selection of DIN field-attachable, molded DIN and DIN accessories which include lighted adaptors/surge protectors for the 18, 11, 10, 9.4 and 8mm classes of DIN valve desgins.

Brando DIN connectors are manufactured to meet the hydraulic and pneumatic de facto standard for quick-disconnect connectors. Our connectors support all DIN 43650 connector sizes, providing you with solutions for connecting all your solenoid valves and pressure switches & transducers.

Dimension & Data of Solenoid Coil Connector:

DIN 43650A Connector:

Dimension	DIN Type	DIN 43650 Form A
	Distance	18mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x28
	Nomical Current	10A
	Contact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650B Connector:

Dimension	DIN Type	DIN 43650 Form B
	Distance	11mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Srew	M3x30
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

DIN 43650C Connector:

Dimension	DIN Type	DIN 43650 Form C
	Distance	9.4mm
	Form	2+1GND, 3+1GND
	Protection Class	IP65
	Working Voltage	AC380V, DC300V
	Fixing Screw	M3x25
	Nomical Current	10A
	Cntact Resistance	≤5mΩ
	Max Conductor Section	3x1.5mm²

Brando manufactures an extensive and comprehensive range of internal- and external-thread connectors conforming to industry standard EN 175301-803 (formerly DIN 43650). Standard options include LED illuminated devices as well as VDR, diodes to offer protection against overvoltage peaks. Solenoid coil connectors offer protection from dust and water when correctly installed with screw and gasket which are supplied together with the connector.

Brando's field-attachable, external-nut design is mechanically superior to traditional internal-nut DIN valve connectors, achieving greater cable retention and improved sealing to IP67. Standard internal thread DIN valve connectors are IP65 rated and available with different thread style, gaskets and circuitry options.
