Place of Origin: | Ningbo, China |
Brand Name: | BRANDO |
Certification: | CE |
Model Number: | DIN 43650B |
Minimum Order Quantity: | 3pcs |
---|---|
Price: | negotiation |
Packaging Details: | decades ad box,then put into carton |
Delivery Time: | 4-7 work days |
Payment Terms: | L/C, T/T, Western Union, D/A |
Supply Ability: | 6000pcs per two days |
Part Name: | Solenoid Coil Connector | DIN Type: | DIN 43650 Form B |
---|---|---|---|
Gender: | Female | PIN Number: | 3 PIN |
Distance: | 11mm | Form: | 2+1GND, 3+1GND |
Wokring Voltage: | AC380V, DC300V | Protection Class: | IP65 |
Nomical Current: | 10A | Contact Resistance: | ≤5mΩ |
Max Conductor Section: | 3x1.5mm² | Fixing Screw: | M3x30 |
High Light: | DIN 43650 Solenoid Valve Connector,Solenoid Valve Connector Form A,Solenoid Electrical Connector |

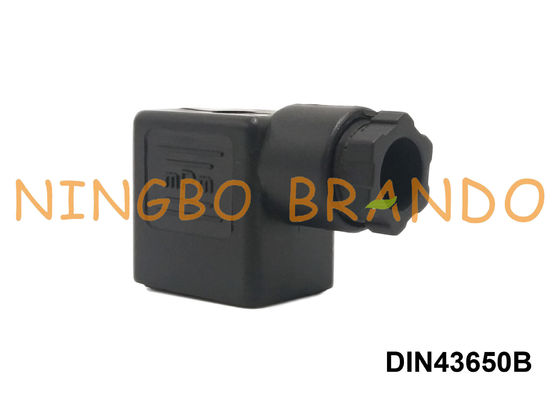

Black MPM DIN 43650B DIN 43650 Form B Solenoid Coil Connector Plug
DIN 43650 Form B connectors have 2 different pin spacings: 10mm & 11mm between the pins. 11mm connectors will have 3 flat blade contacts. 10mm connectors will have 1 flat blade and 2 U shaped contacts pointing outward.
DIN 43650 connectors are primarily used with solenoid valves offering a secure and water resistant method for applying power. The Din 43650 connectors can be found in hydraulics and pneumatics applications as well as pressure sensors and switches, optical, limit and proximity switches. They can also be used in marine applications.
The hardwired Form B connectors feature PG 9 cable entries, as well as 1/2" NPT for conduit. DIN 43650 Form B connectors with molded cable are 2 + ground and can come with 2, 3, 5 or 10 meter cable lengths. Circuited versions of the hardwired and molded connectors have options including an LED indicator to confirm the voltage supply and MOV surge suppression or diodes to give overvoltage protection to the source and load. The M12 DIN connectors are fitted to an M12 receptacle or molded cable plug and can be circuited if necessary.
Dimension & Data of Solenoid Coil Connector:
DIN 43650A Connector:
Dimension |
DIN Type
|
DIN 43650 Form A
|
Distance
|
18mm
|
|
Form
|
2+1GND, 3+1GND
|
|
Protection
Class
|
IP65
|
|
Working
Voltage
|
AC380V, DC300V
|
|
Fixing Screw
|
M3x28
|
|
Nomical Current
|
10A
|
|
Contact Resistance
|
≤5mΩ
|
|
Max Conductor Section
|
3x1.5mm²
|
DIN 43650B Connector:
Dimension |
DIN Type
|
DIN 43650 Form B
|
Distance
|
11mm
|
|
Form
|
2+1GND, 3+1GND
|
|
Protection
Class
|
IP65
|
|
Working Voltage
|
AC380V, DC300V
|
|
Fixing Srew
|
M3x30
|
|
Nomical Current
|
10A
|
|
Cntact Resistance
|
≤5mΩ
|
|
Max Conductor Section
|
3x1.5mm²
|
DIN 43650C Connector:
Dimension |
DIN Type
|
DIN 43650 Form C
|
Distance
|
9.4mm
|
|
Form
|
2+1GND, 3+1GND
|
|
Protection Class
|
IP65
|
|
Working Voltage
|
AC380V, DC300V
|
|
Fixing Screw
|
M3x25
|
|
Nomical Current
|
10A
|
|
Cntact Resistance
|
≤5mΩ
|
|
Max Conductor Section
|
3x1.5mm²
|
FAQ:
What is the advantages to use DIN Connector?
Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.
What are DIN 43650 solenoid connectors used for?
DIN 43650 solenoid connectors are suitable for use in varied industrial applications such as machine building and tooling or equipment manufacture. Other applications include facilitating power and signal transmission in magnetic valves, temperature sensors and pressure transducers.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Echo
Tel: +8613454729544
