Detailed Product Description
Part Name: Solenoid Coil Connector DIN Type: DIN 43650 Form B
Gender: Female PIN Number: 3 PIN
Distance: 11mm Form: 2+1GND, 3+1GND
Wokring Voltage: AC380V, DC300V Nomical Current: 10A
Contact Resistance: ≤5mΩ Protection Class: IP65
Max Conductor Section: 3x1.5mm² Fixing Screw: M3x30
LED: Available
High Light:

DIN 43650 Form B Connector

,

DIN 43650B Connector

,

Solenoid Connector With Led

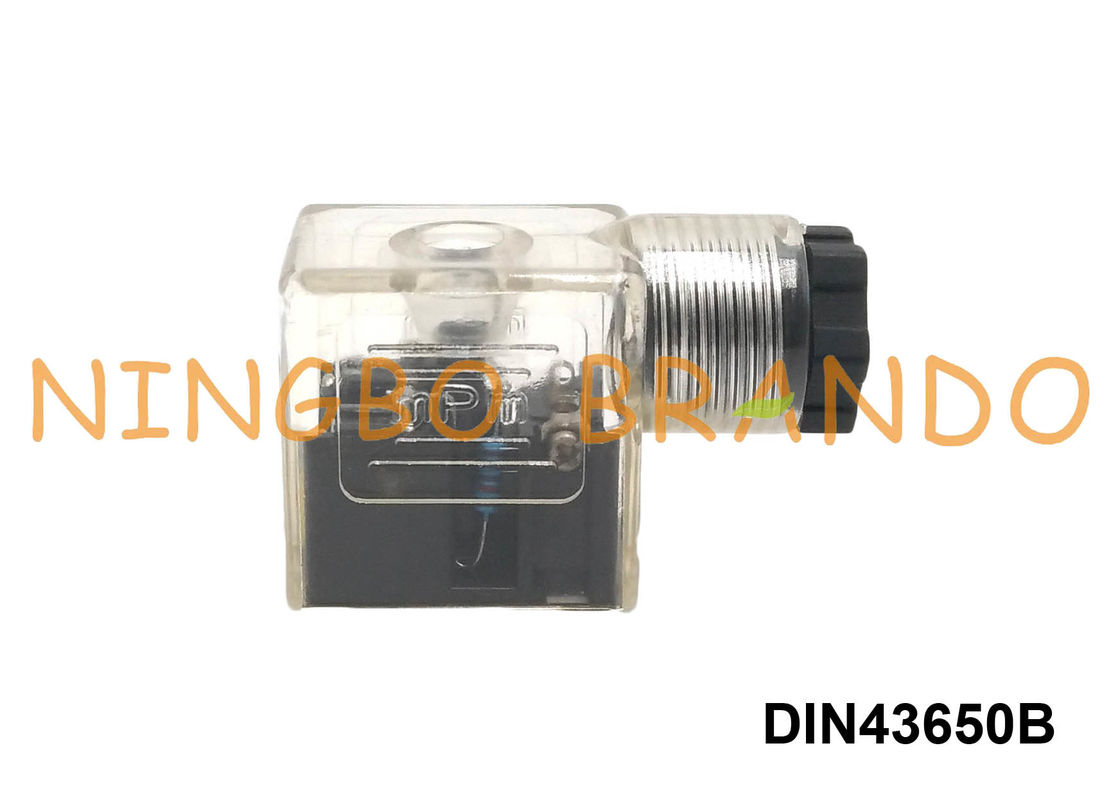

MPM DIN 43650 Form B DIN 43650B Solenoid Coil Connector With LED



The DIN 43650 connectors typically used as a solenoid valve connector are available in the standard most popular Form A, Form B and Form C types. The 18mm Form A DIN 43650 connectors are field wireable and are available in 2 poles plus ground and 3 poles plus ground connection. The Form B DIN 43650 field wireable connectors are available in a 10mm and a 11mm pin spacing in 2 positions with a ground connection. The Form C DIN 43650 field wireable connectors are available in a 8mm and a 9.4mm pin spacing in 2 positions and 3 positions plus a ground. These field wireable DIN 43650 connectors feature a center locking screw and a gasket that ensure a protection rating of IP65/67 after assembly. Wiring to these DIN 43650 solenoid valve connectors is made quick and easy with the use of screw contacts for wire termination of 20-16AWG. To ensure a reliable connection between the connectors that contacts are brass with silver plating. The DIN 43650 connector Form A, B and C are UL approved and there are solenoid valve connectors for hazardous location applications that carry an ATEX approval rating. In addition to the field wireable DIN 43650 connectors we offer DIN 43650 cable assemblies both standard and custom configurations upon request.


Product Features:
1. Product Name: Solenoid Valve Coil Connector
2. Application: Power
3. Gender: Female
4. Pin Number: 3 PIN
5. Distance: 18mm, 11mm, 9.4mm
6. DIN Type: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C
7. Form: 2+1GND, 3+1GND
8. Wokring Voltage: AC380V, DC300V
9. Protection Class: IP65, IP67, IP68 (Waterproof)
10. Nomical Current: 10A
11. Contact Resistance: ≤5mΩ
12. Max Conductor Section: 3x1.5mm², 3x0.75mm²
13. Fixing Screw: M3x28, M3x30, M3x25
14. LED: Available



Dimension & Data of Solenoid Coil Connector:



DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
MPM DIN 43650 Form B DIN 43650B Solenoid Coil Connector With LED 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
MPM DIN 43650 Form B DIN 43650B Solenoid Coil Connector With LED 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
MPM DIN 43650 Form B DIN 43650B Solenoid Coil Connector With LED 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



FAQ:


What is DIN?
DIN (or Deutsche Industrial Normale) is a series of uniformity standards developed in Germany, which apply to commonly manufactured items.



What is DIN 43650?
DIN 43650 is the standard for a series of electrical connectors, which are commonly used with solenoid valves (especially those used on valves in hydraulics and pneumatics). Other applications include the connection special sensors, such as pressure switches, filter switches, optical, proximity and limit switches.
